| Rated current | 6 A |
| Power consumption | 1380 W |
| Device weight | 14 kg |
| Frequency | 50 Hz |
| Protection class | I |

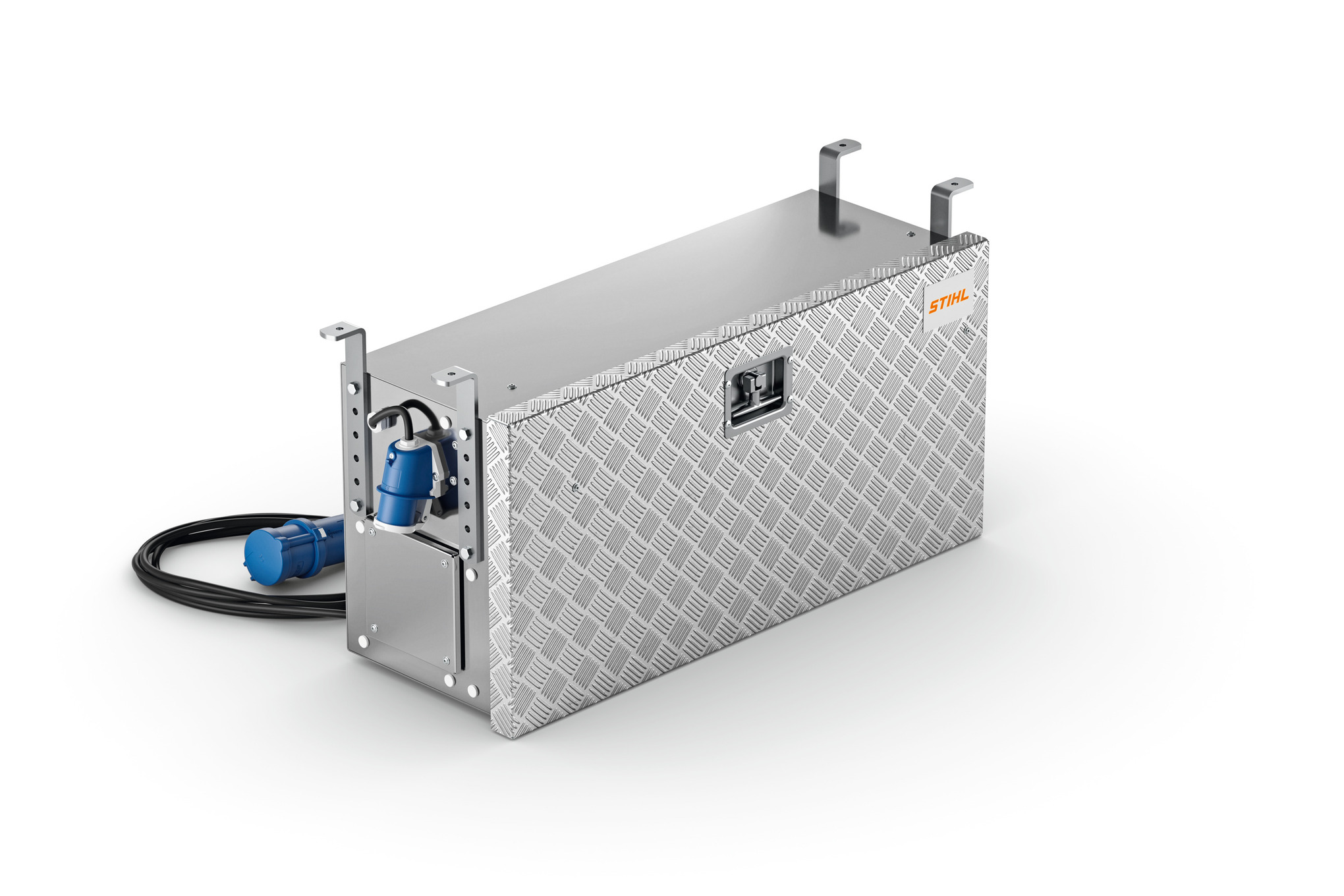

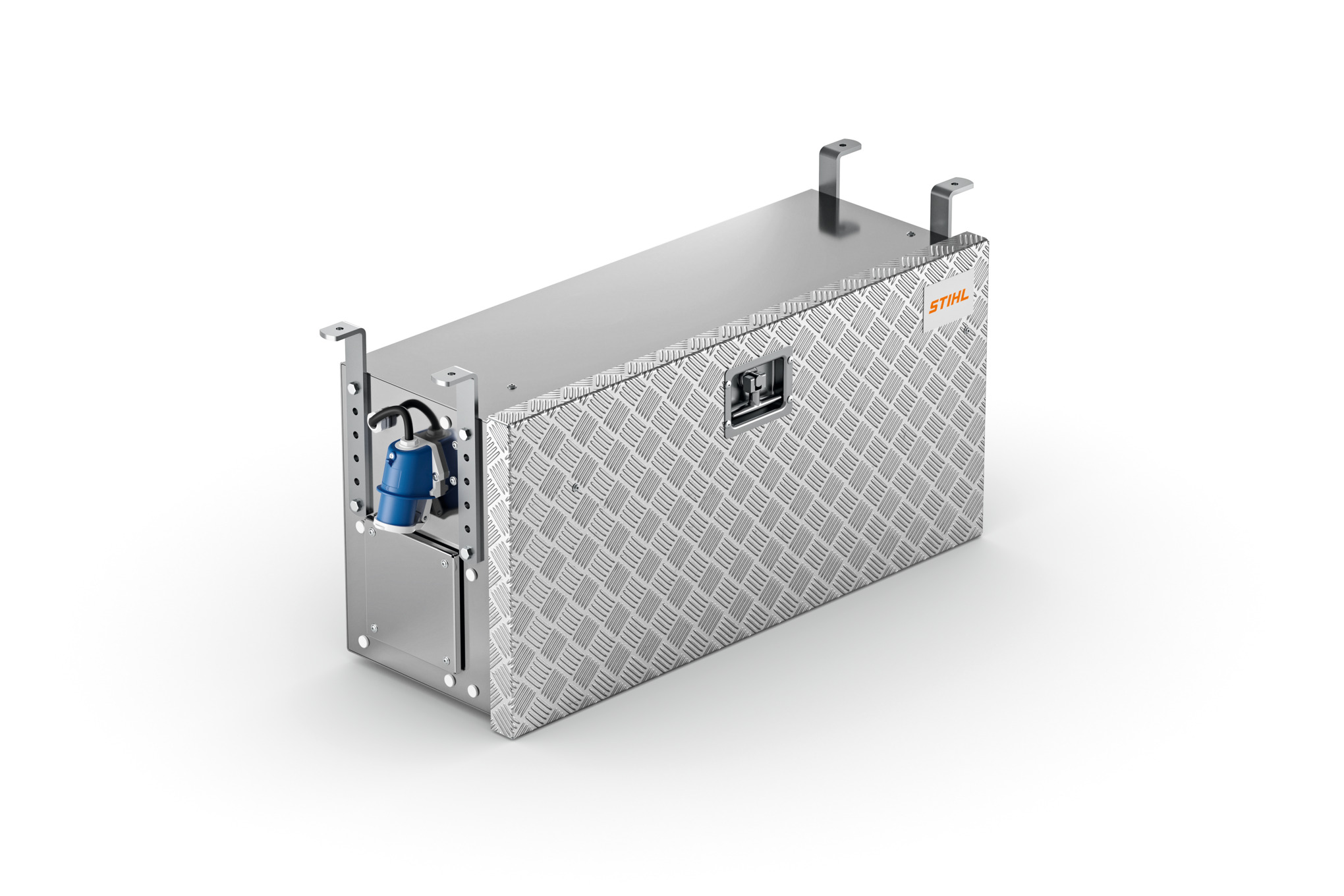

The STIHL CB 1 is a mobile charging solution designed for professional landscapers and council authorities. it is capable of charging and transporting up to 8x AP System batteries on your work vehicle, van or truck.

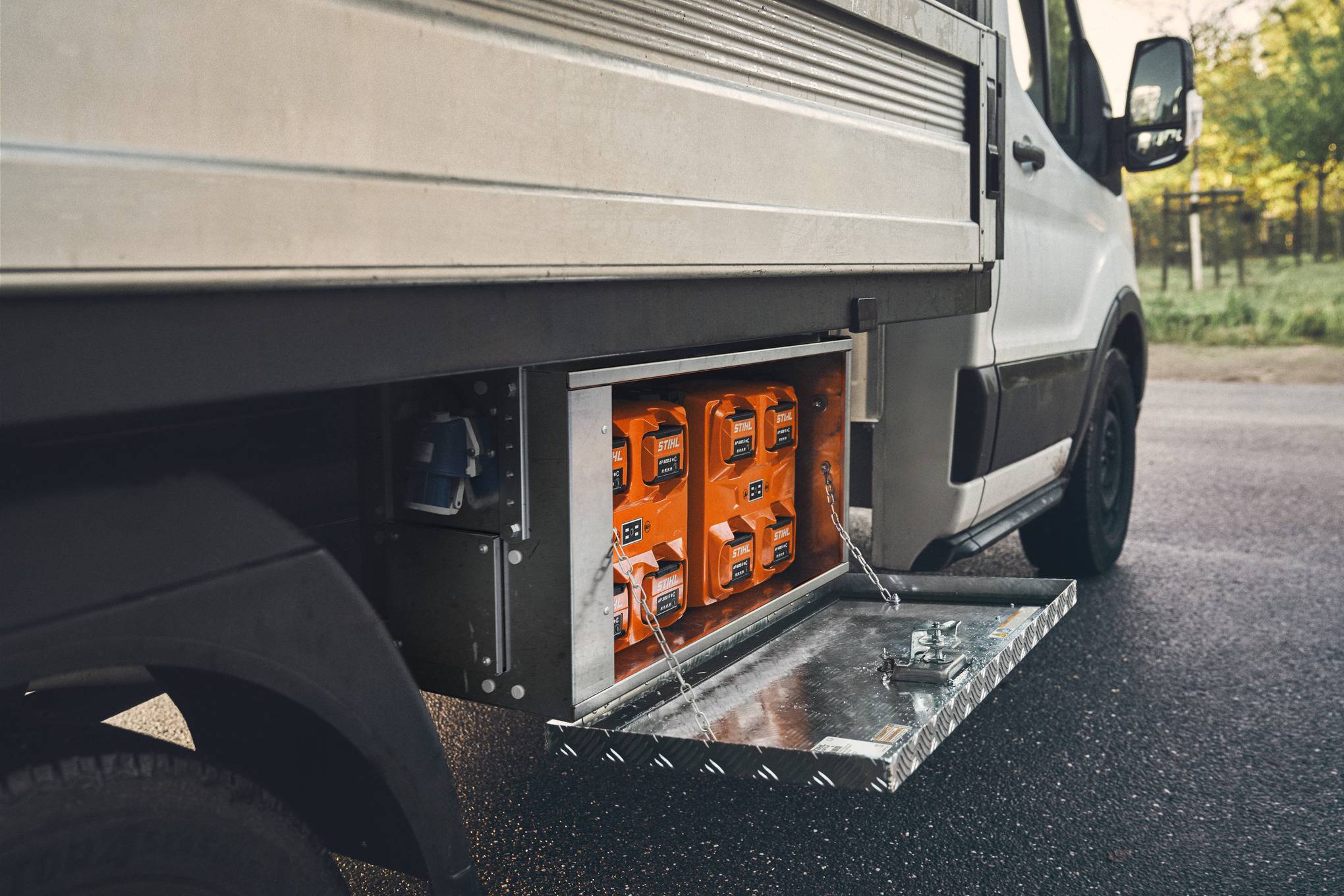

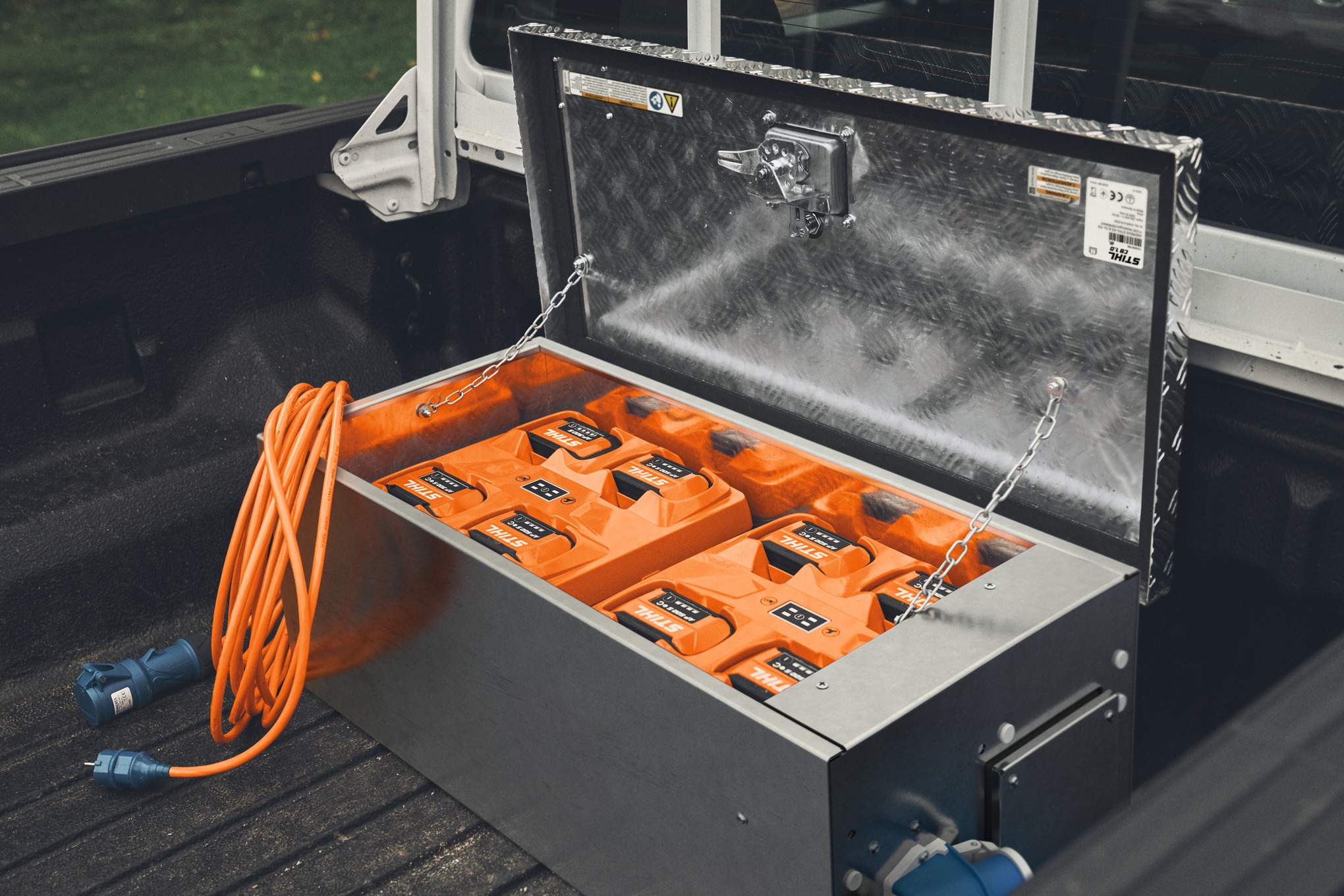

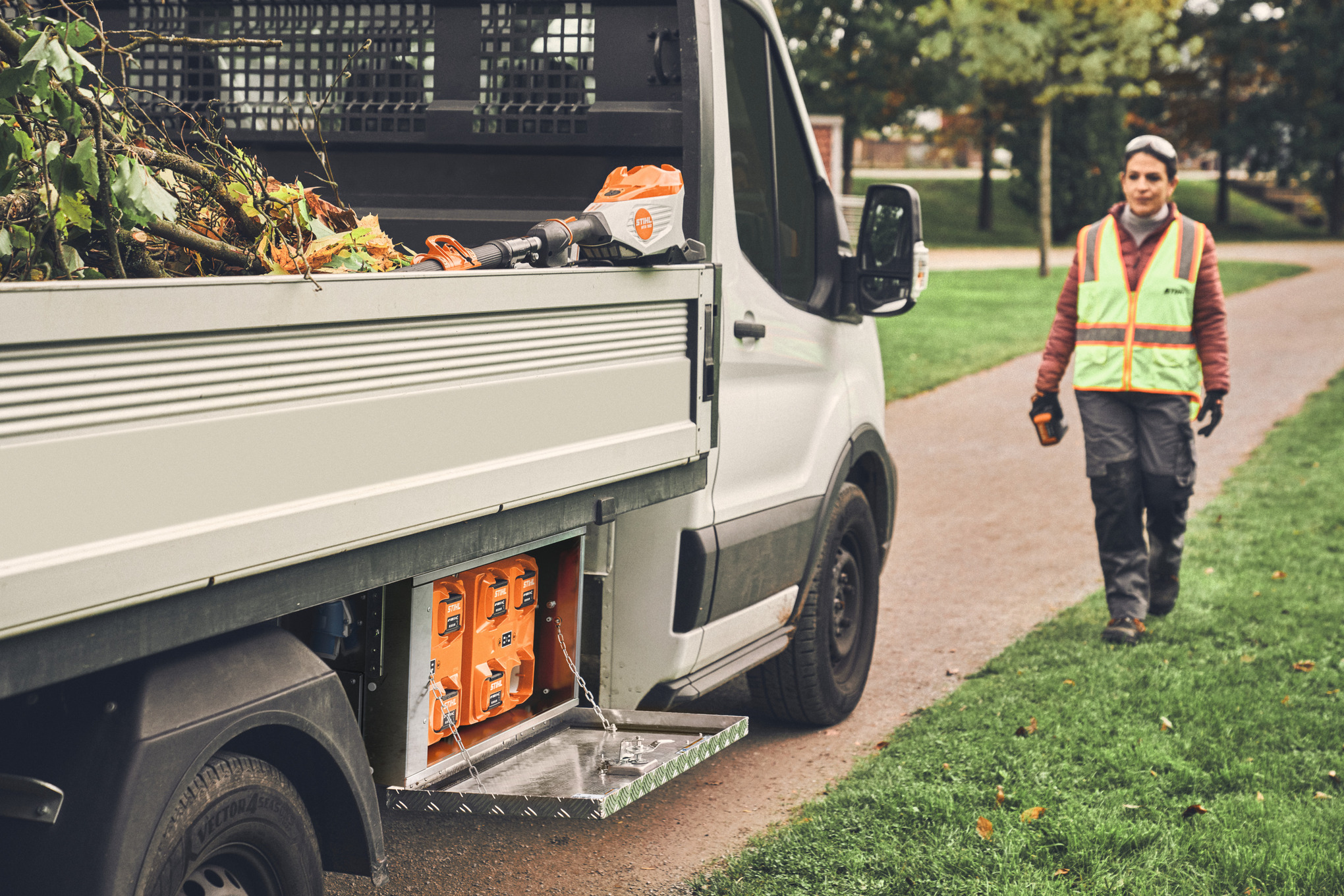

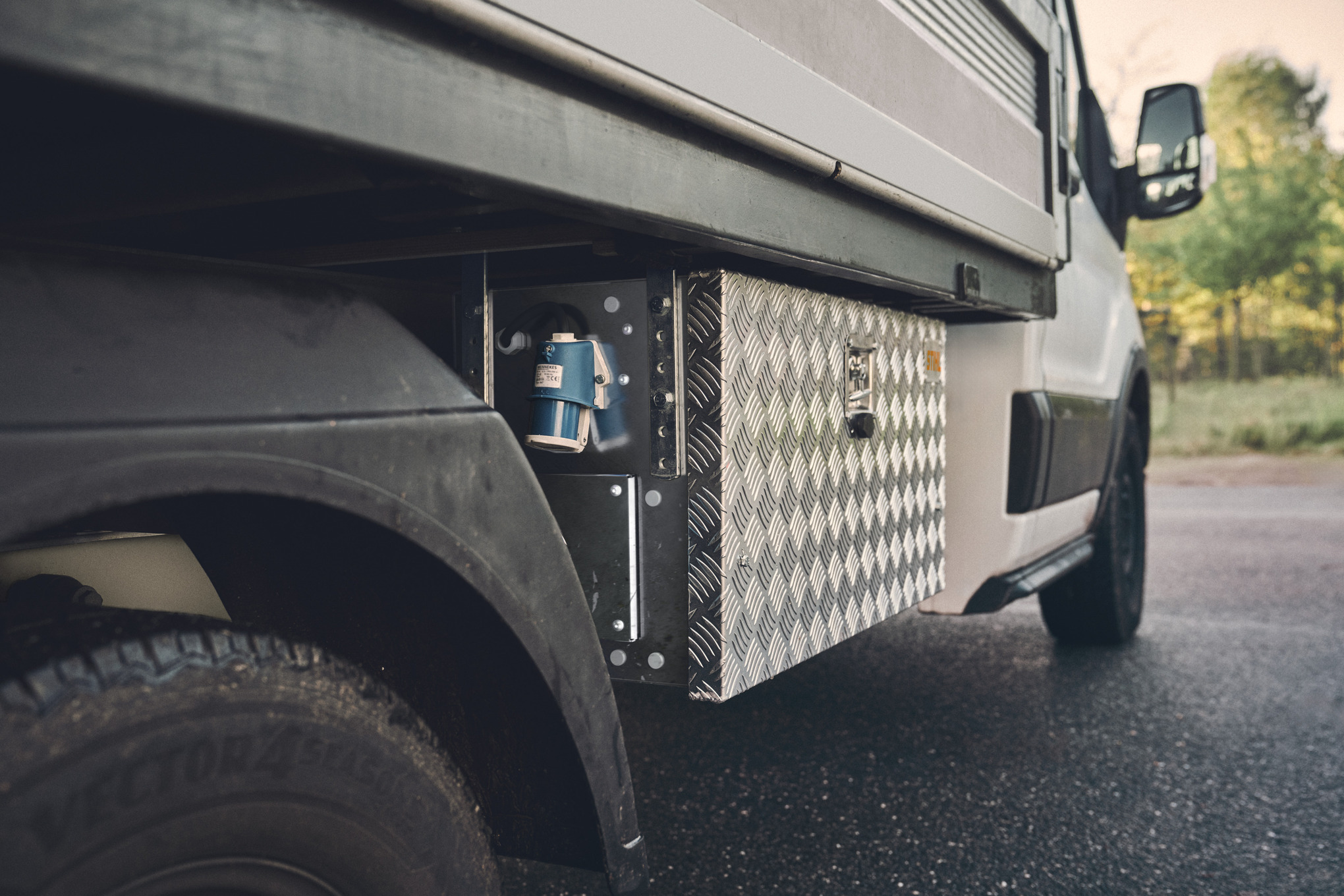

The CB 1 is an all-in-one solution – it charges and transports batteries without the need for manual handling, saving time for you and your team while improving overall efficiency. It can be mounted underneath your vehicle to make use of otherwise unused space, freeing up room for tools, machinery, and green waste in the back. Alternatively, it can be mounted on the top of a flatbed truck or trailer for maximum versatility. A fixing kit is included, allowing for easy installation without the need for additional accessories.

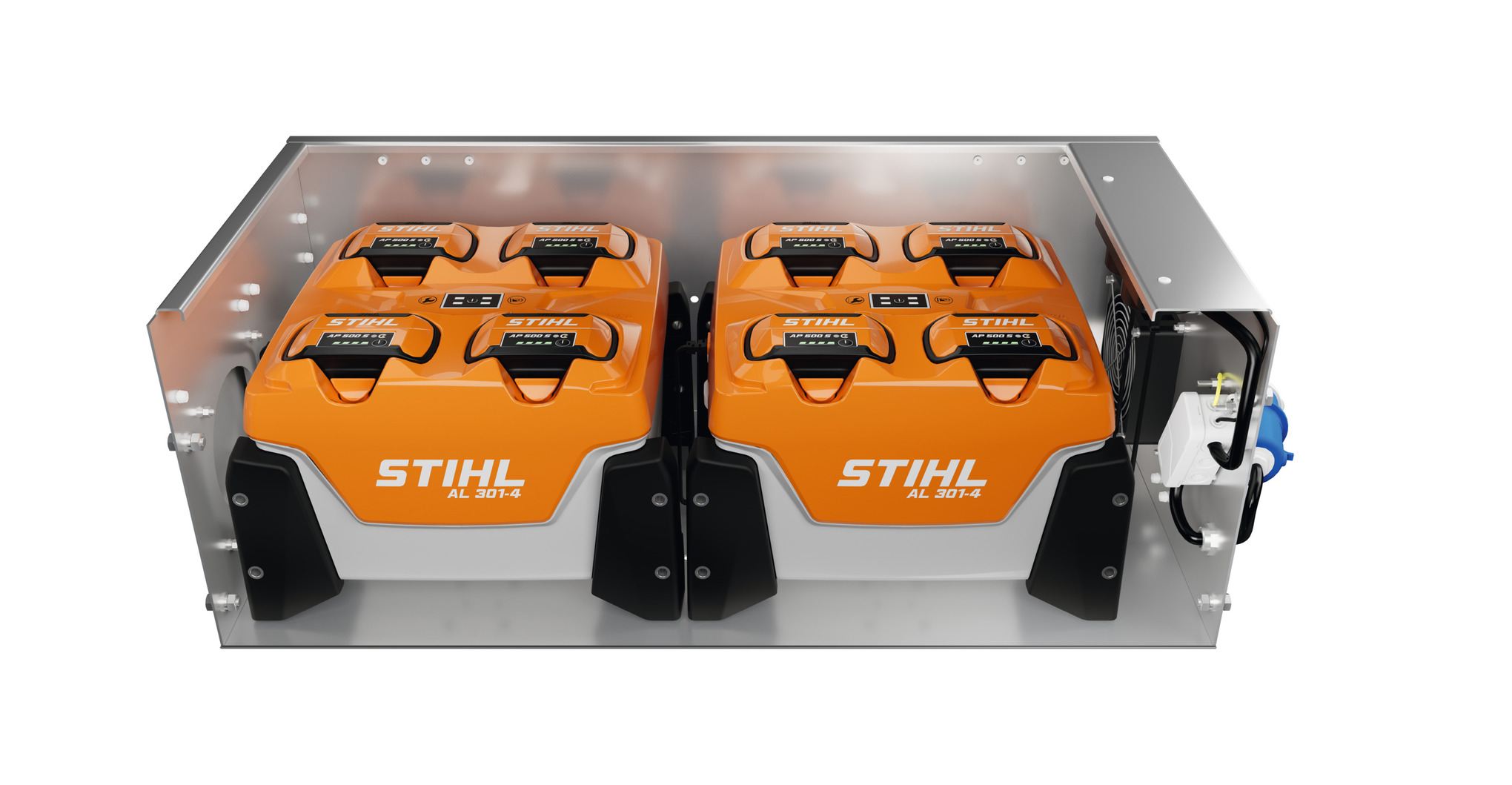

The charging box is lockable and has space for two AL 301-4 chargers (sold separately). Passive ventilation helps to keep your batteries cool during the charging process. The box is unbranded and does not feature an exterior STIHL logo (as shown), helping to avoid drawing unwanted attention. The CB 1 is powered via the 5 metre power cable that is included in the scope of delivery.
The CB 1 is IPX4 rated for water resistance, offering protection against rain and splashes.
Included in the scope of delivery:
CB 1 charging box specifications:
Please note: the CB 1 is best suited to overnight charging at the end of the working day. It can also be used for charging whilst driving; however, you will need to connect the CB 1 to an inverter or power bank, such as the PS 3000, installed in your work vehicle.
