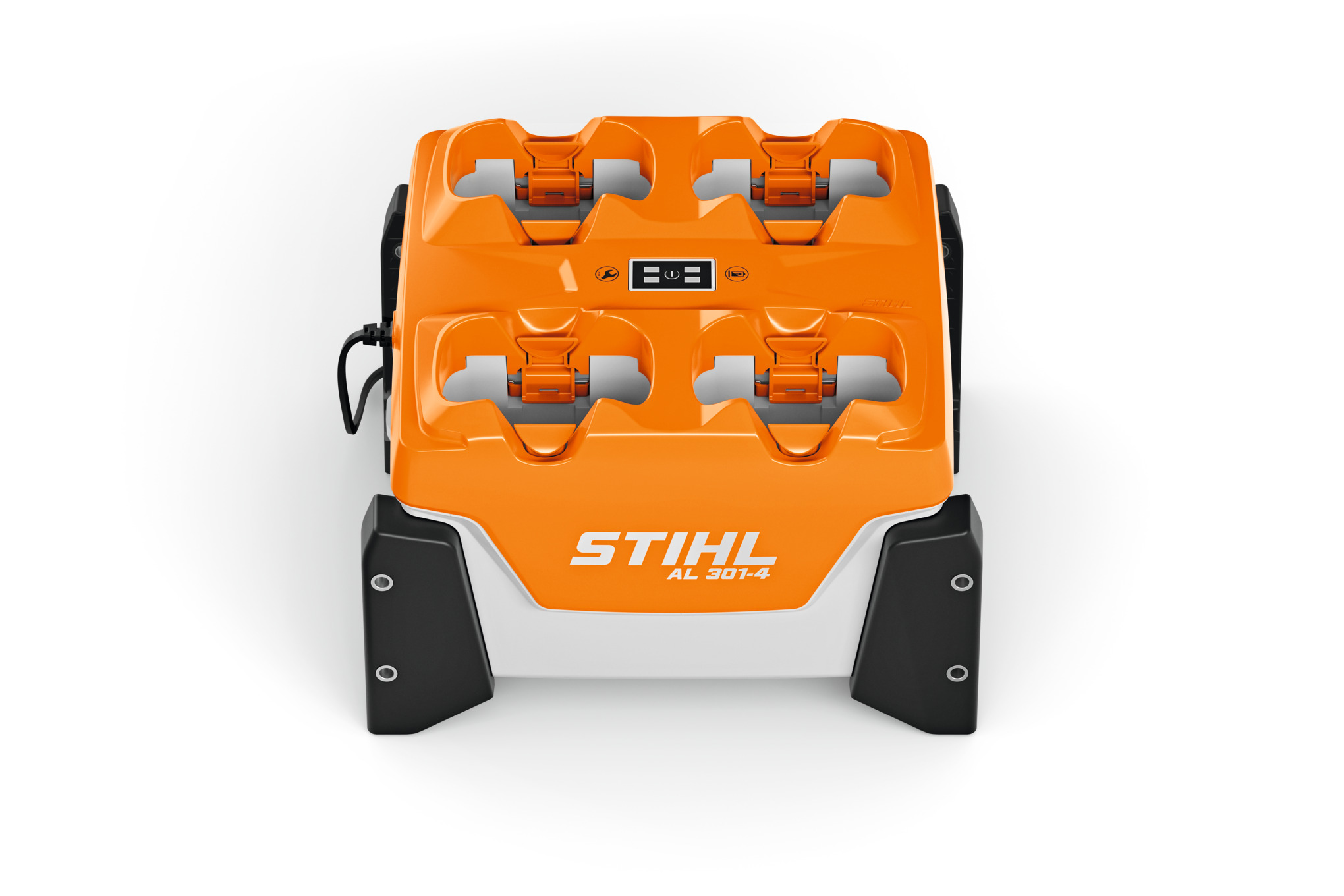

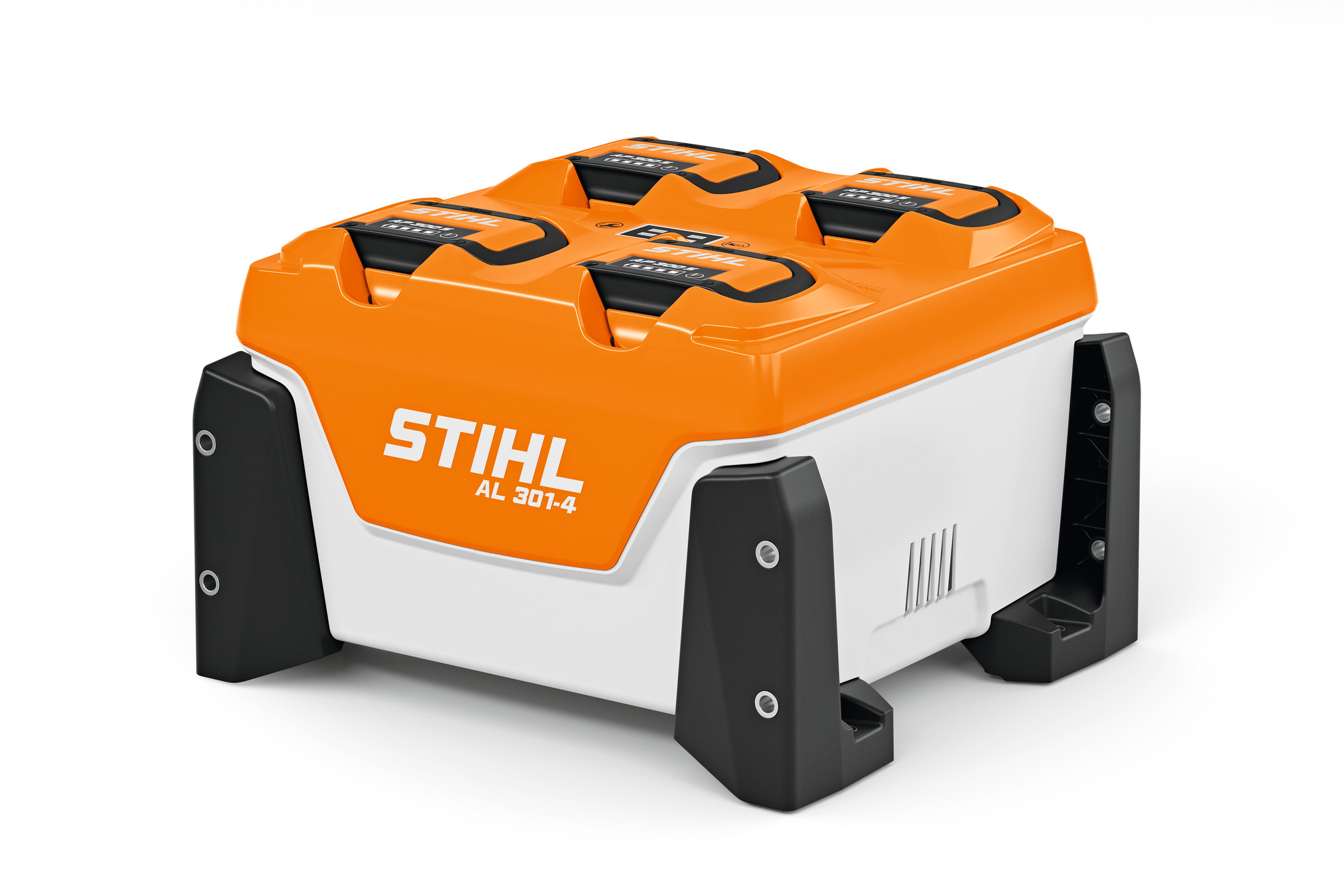

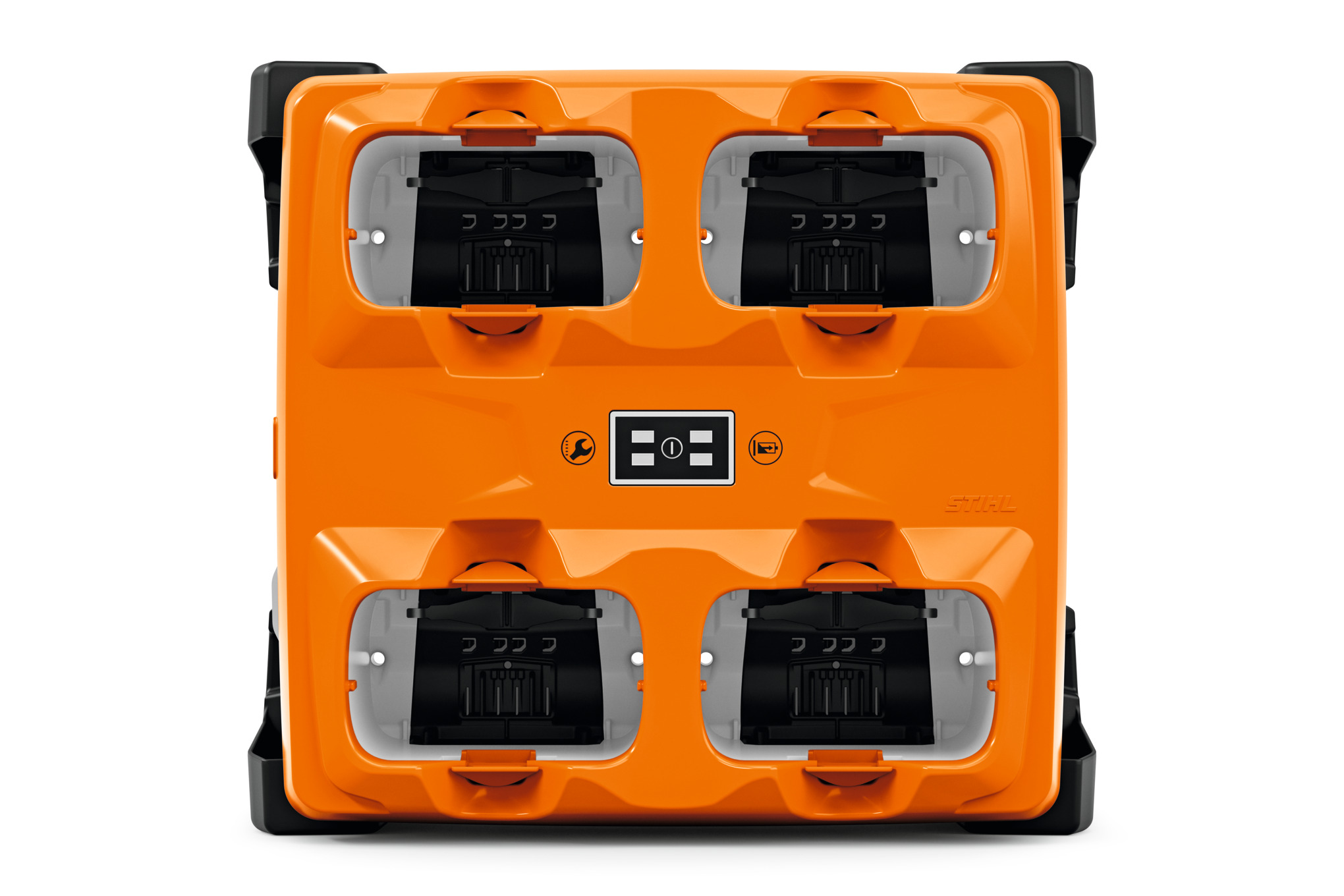

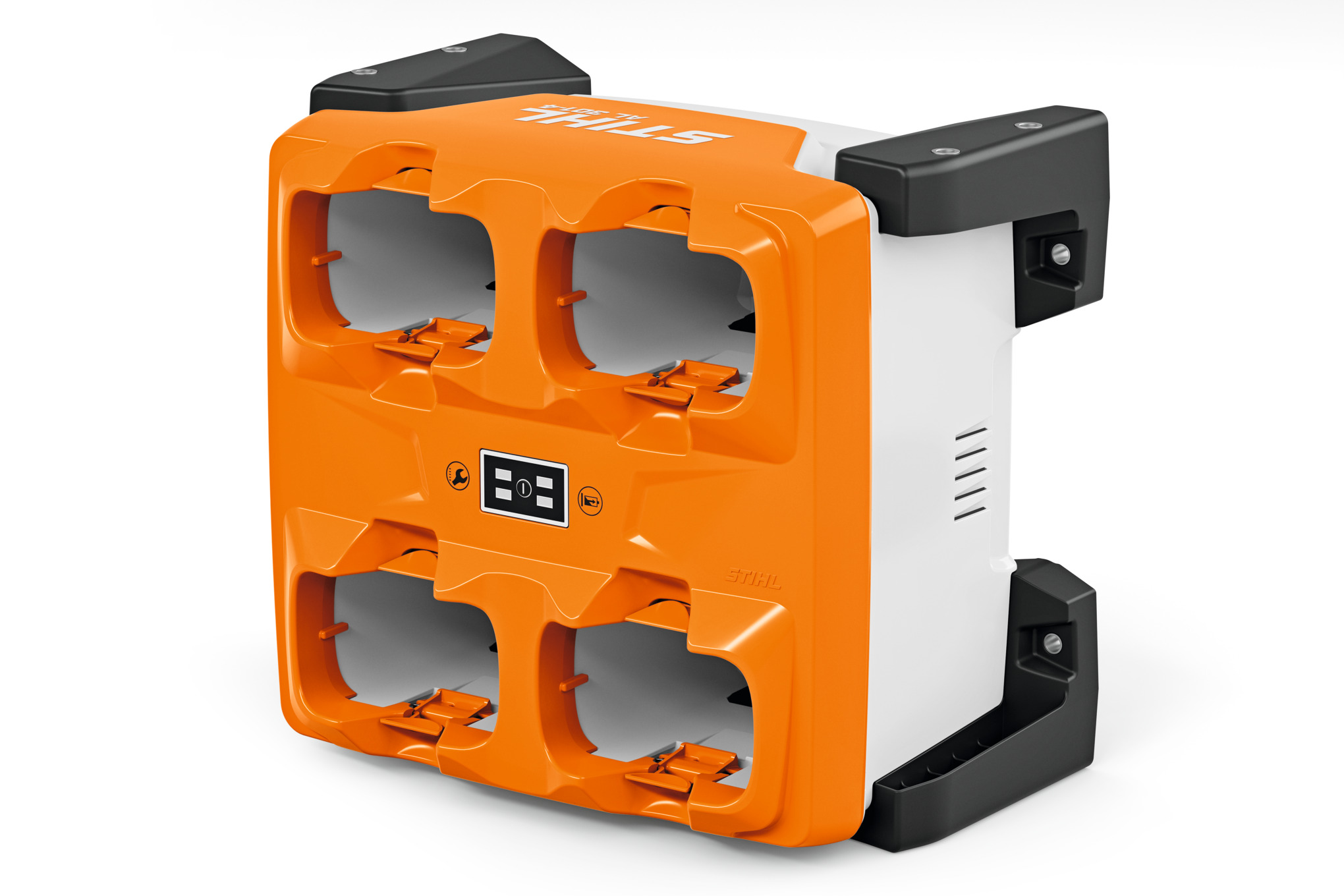

AL 301-4 Multiple battery charger
Free delivery for orders of £100 or more
Online availableEstimated delivery date: Mon, 04/05 - Wed, 06/05
- Product Details
- Sequential charging of up to 4 batteries
- Multiple battery charger for the STIHL AP System
- Can be used in a vehicle, workshop or at home
- Space-saving - can be lined up and stacked
- View charge levels with the push of a button
- Instruction manuals
You can find the instruction manuals here.
Technical details
| Rated voltage | 220-240 V |
| Rated current | 2.3 A |
| Power consumption | 300 W |
| Weight | 4.4 kg |
| Charging current | 6.50 A |
AL 301-4 Multiple battery charger: 230 Volt, 6.5 Amp charger for AP System batteries
230 V. Multiple battery charger for sequential charging of up to 4x AP batteries or AR L batteries (AR L connecting cable & adapter required).
This AL 301-4 has a 6.5 A charging current for fast recharge times and a built-in fan for active battery cooling. It automatically switches off when the battery is fully charged to prevent overcharging. And it has an LED indicator which shows you when the battery is charging or is fully charged.

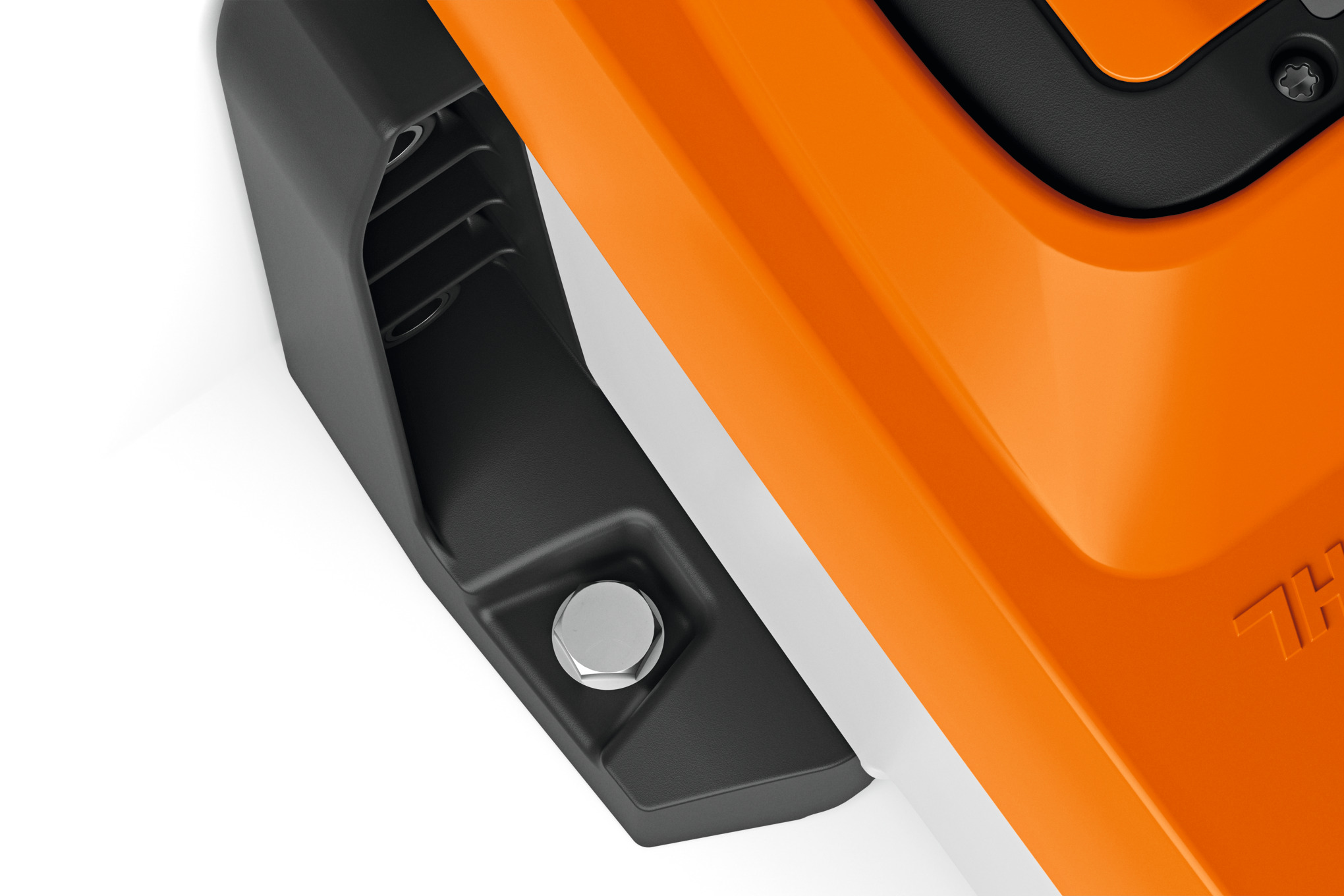

A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be secured to a wall, shelf, or permanently installed in a vehicle. The AL 301-4 can also be fitted to the CB 1 charging box.
| AP System charge times (80/100%) | ||
|---|---|---|
| AP 20 battery | 30 mins | 50 mins |
| AP 200 S battery | 40 mins | 55 mins |
| AP 30 battery | 60 mins | 80 mins |
| AP 300 S battery | 55 mins | 80 mins |
| AP 500 S battery | 70 mins | 90 mins |
| AR 2000 L battery | 220 mins | 290 mins |
| AR 3000 L battery | 330 mins | 430 mins |
Cannot be used with AK batteries.
