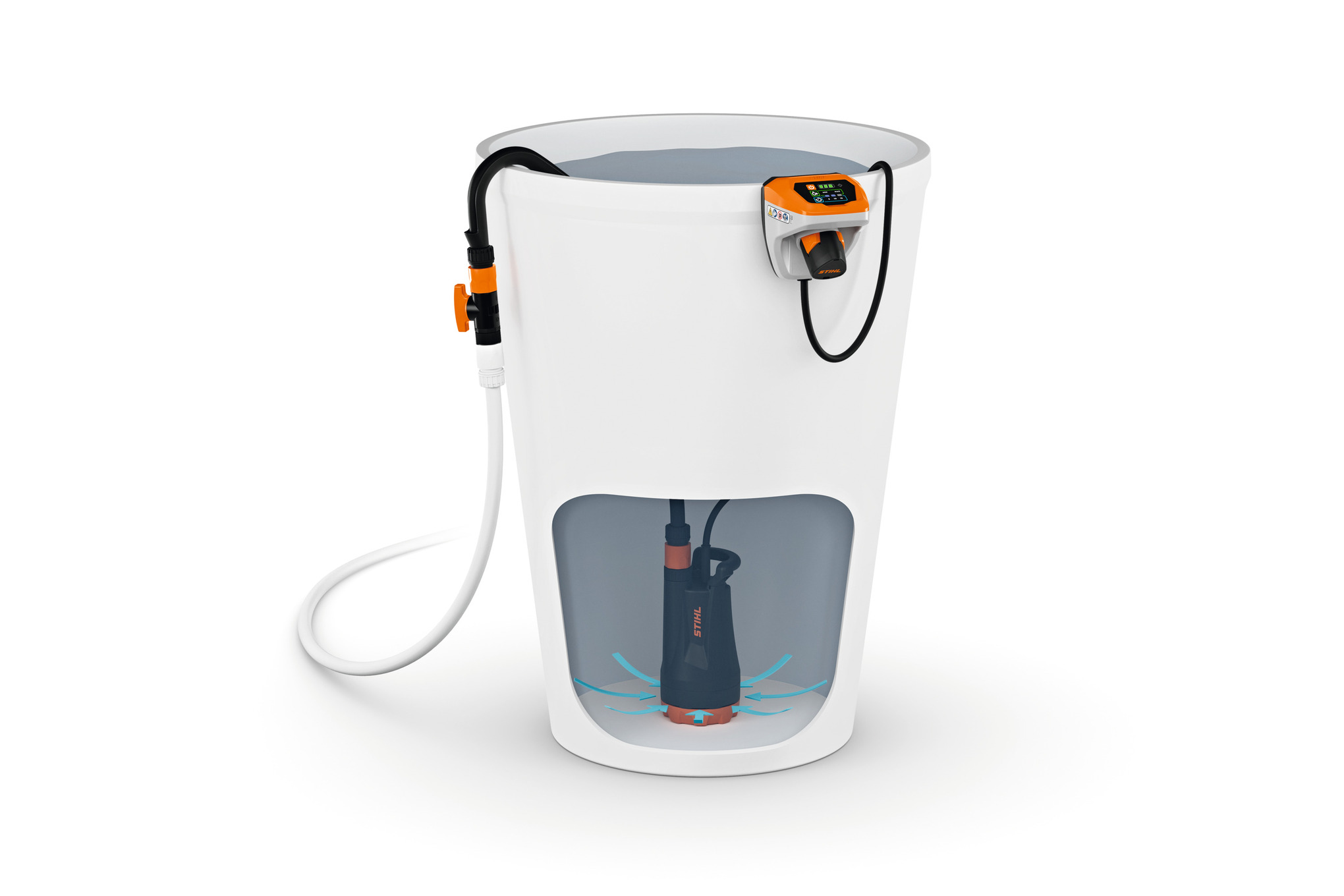

MAXIMUM FLEXIBILITY FOR DIFFERENT APPLICATIONS. The water pump is suitable for irrigation with rainwater as well as for pumping clean water. The additional flat suction function also allows containers, pools or tanks to be emptied almost completely.
New
TPA 20 Cordless Water Pump - AS System
£104.00
Prices include 20% VAT.
Select option
Available to buy from STIHL Approved Dealers
Click on the button above to find your nearest one
- Product Details
- Individual tool without battery and without charger
- Can be used flexibly as a submersible or rainwater tank pump
- Battery operation for use around gardens and plots
- Easy operation with timer function and power levels
- Flat suction function for pumping water
- Instruction manuals
You can find the instruction manuals for here
Technical details
| Rated voltage | 11 V |
| Max. voltage | 12 V |
| Power consumption | 100 W |
| Battery system | AS |
| Recommended battery | AS 2 |
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

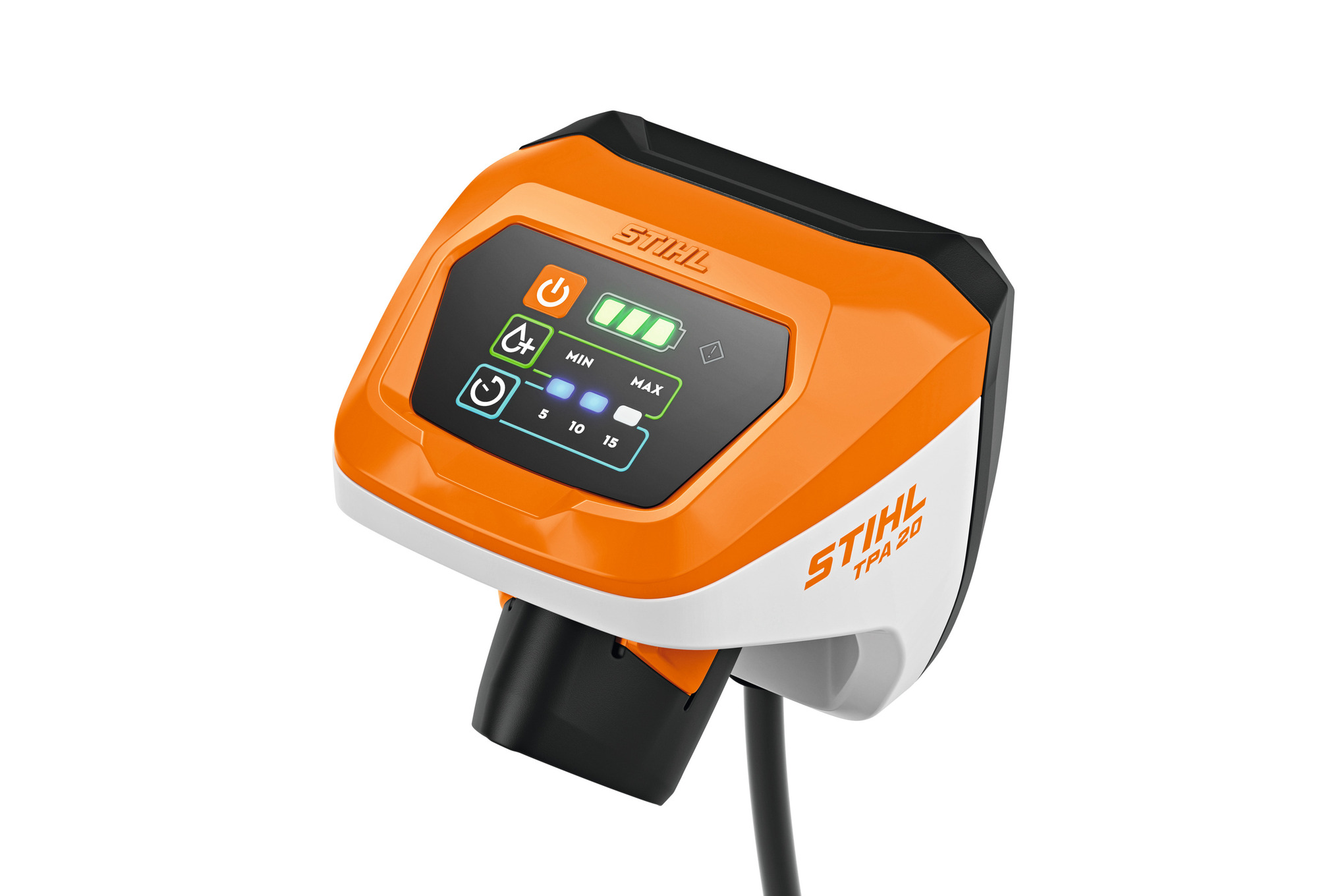

EASY AND QUICK OPERATION. The interface is easy to use and lets you intuitively control all the water pump functions. Important settings are directly accessible, so the power tool is always quick and ready for use.
RELIABLE OPERATION. The integrated dry-running protection automatically detects when there is no water and switches the power tool off automatically. This reduces unnecessary energy consumption, protects components and gives a longer service life to the pump.

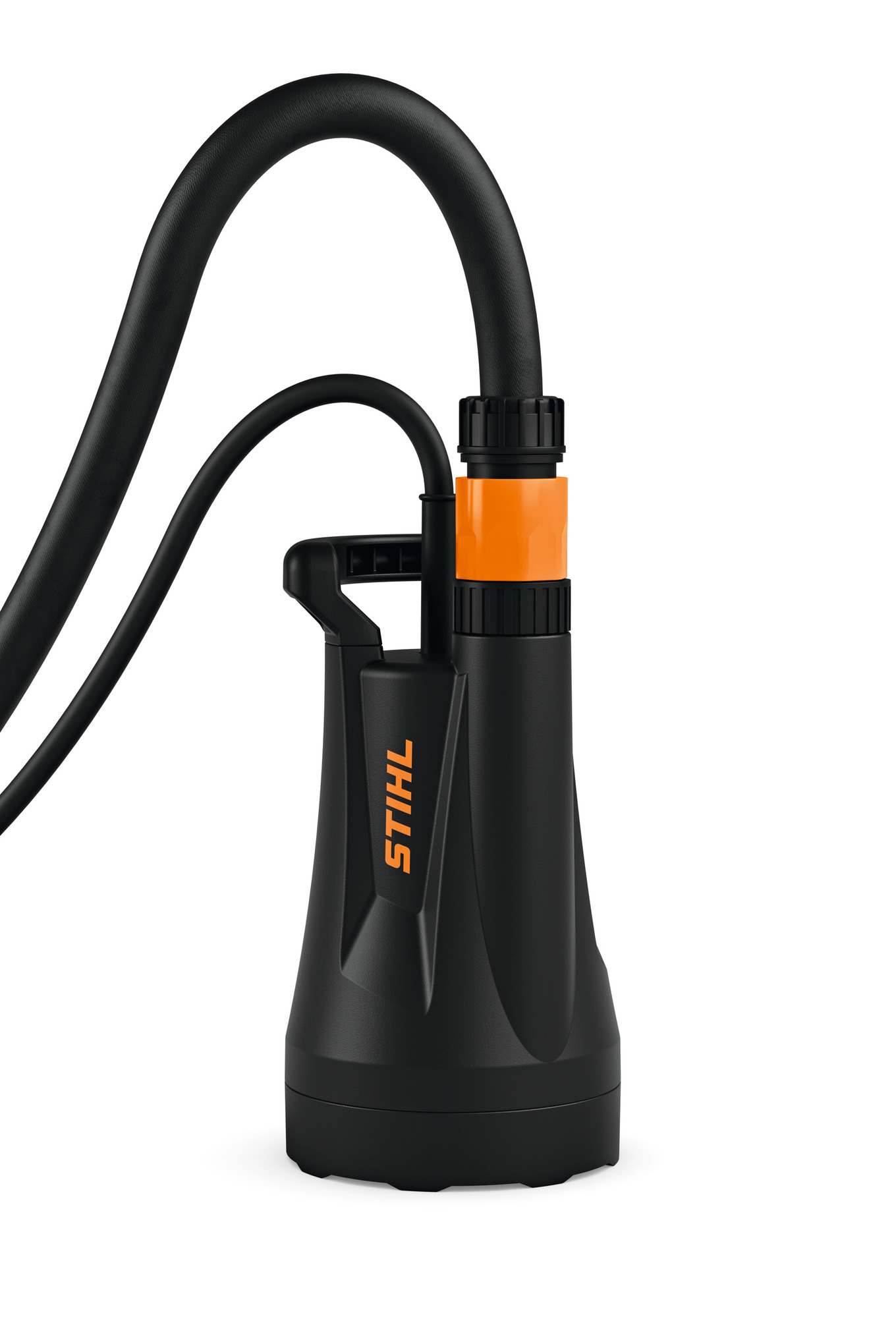

TPA 20 Cordless Water Pump tool only: pump water
Please note that this model is available as a set with a battery and charger, or as a tool only without battery and charger. Please make sure that you choose the correct option when you add to basket.

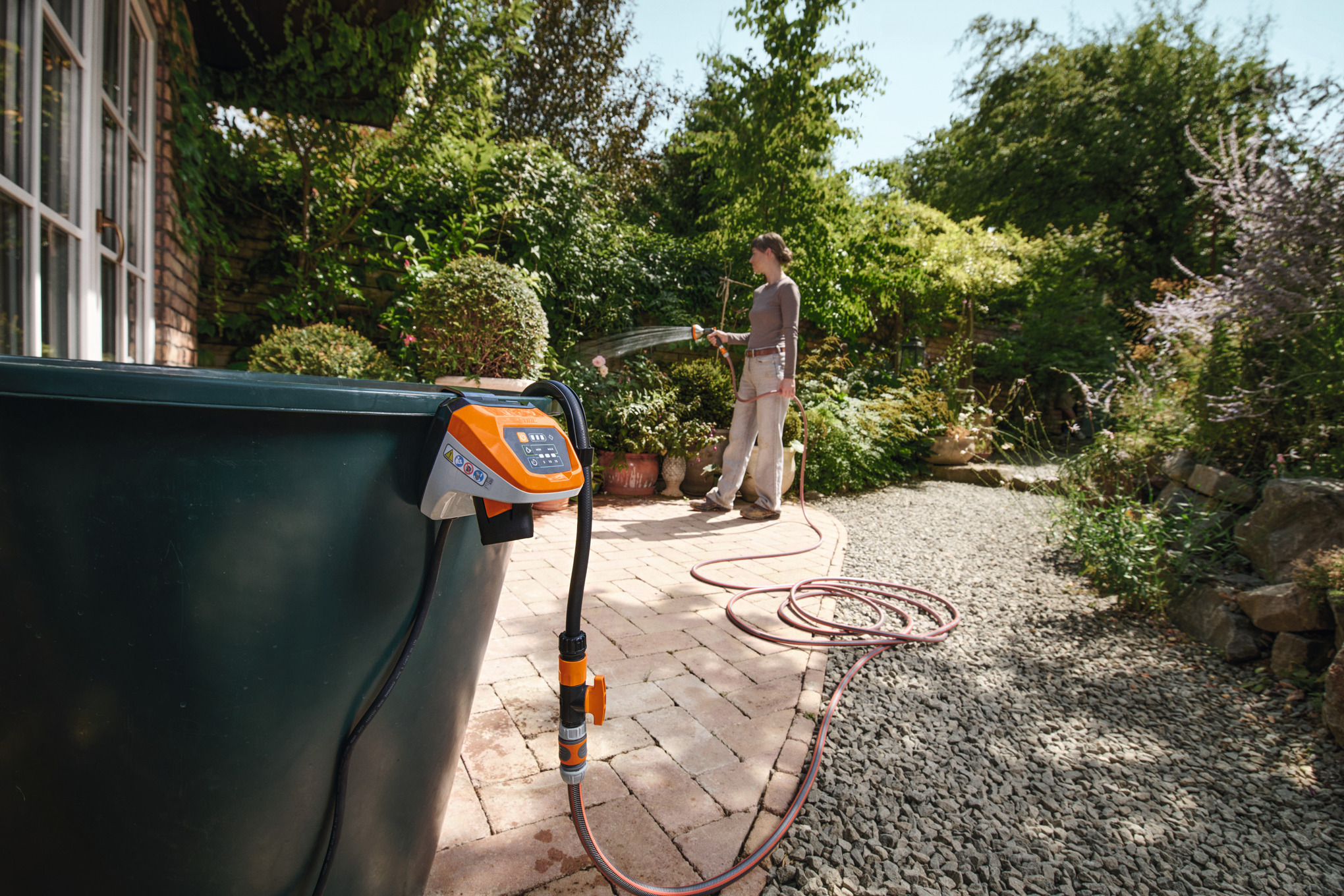

The TPA 20 is a battery-powered water pump from STIHL that has been designed for use in your garden or at an allotment. Thanks to the 10.8 V AS 2 battery it is completely mobile too, making it the perfect portable water pump for your needs.

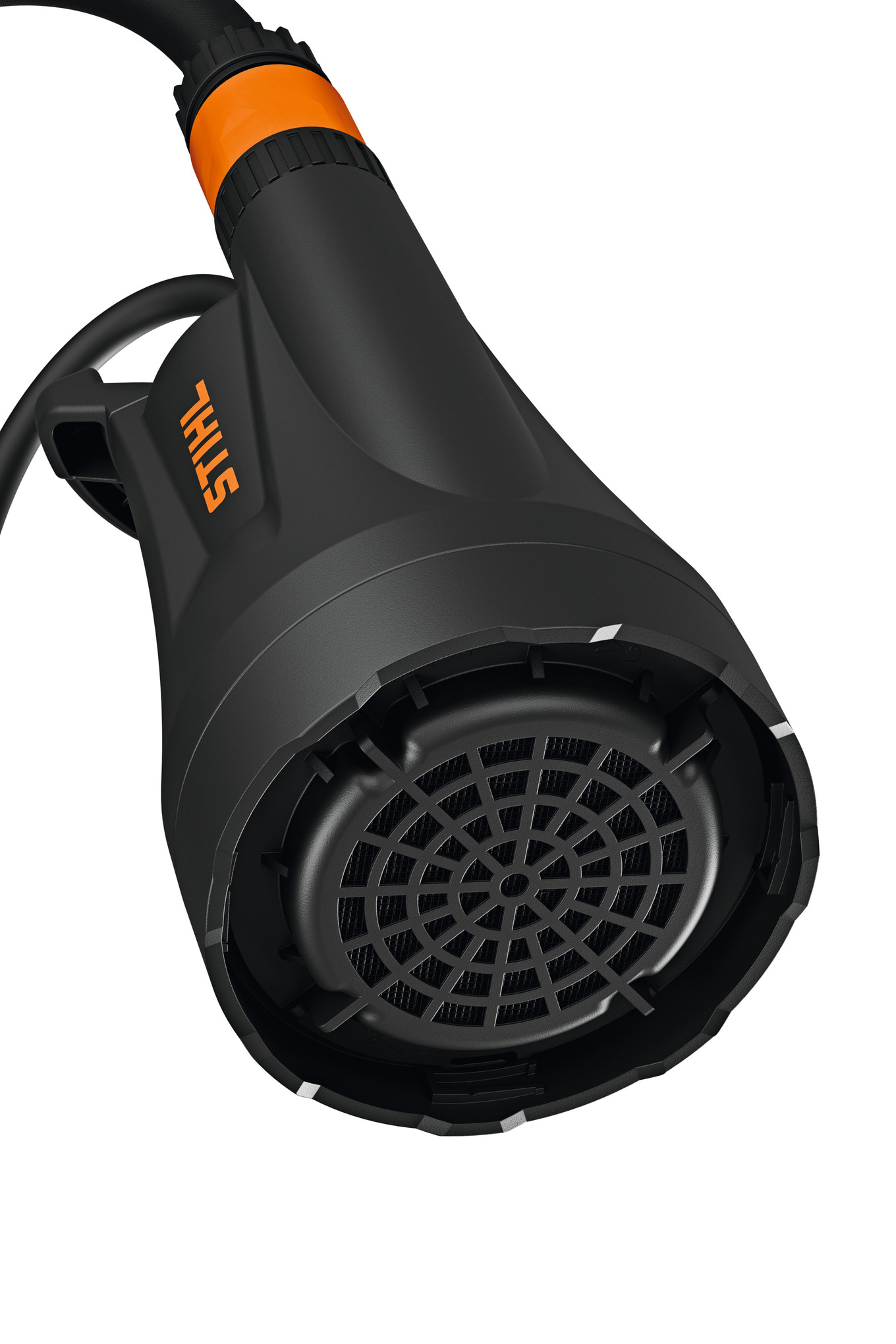

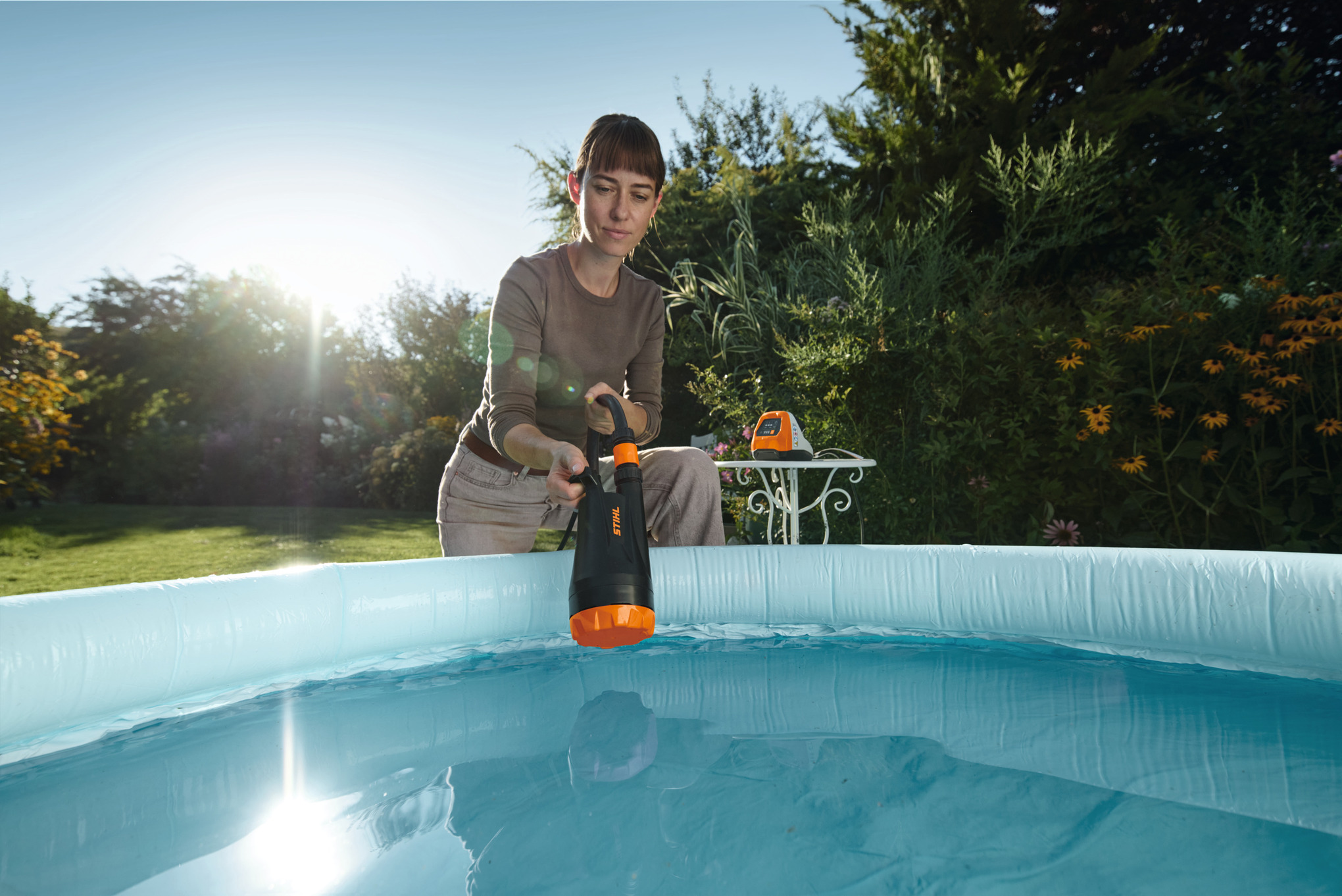

A 2-in-1 unit, it’s suitable for irrigating your garden with collected rainwater, or for draining small pools, tanks or barrels of water. The TPA 20 is simple to use, and you can switch between the modes with ease. The pump base can be removed without the need for tools and converts the TPA 20 into a flat suction function which allows water to be pumped out, which is useful when emptying small pools or during cleaning work. Fitted with a double sealing system and integrated filter that is easy to remove and clean. The pump has dry-running protection that shuts off the device when no water is detected.
The TPA 20 has an intuitive interface with 3 time intervals to choose from (5, 10 or 15 minutes) for efficient operation. It also has 3 power levels to choose from, which allows you to optimally adapt the pressure and flow rate depending on the task
- Level 1 / MIN (1300 l/h, 0.9 bar) - designed for minor cleaning work with a short hose
- Level 2 (1700 l/h, 1.5 bar) - designed for watering with a regular garden hose

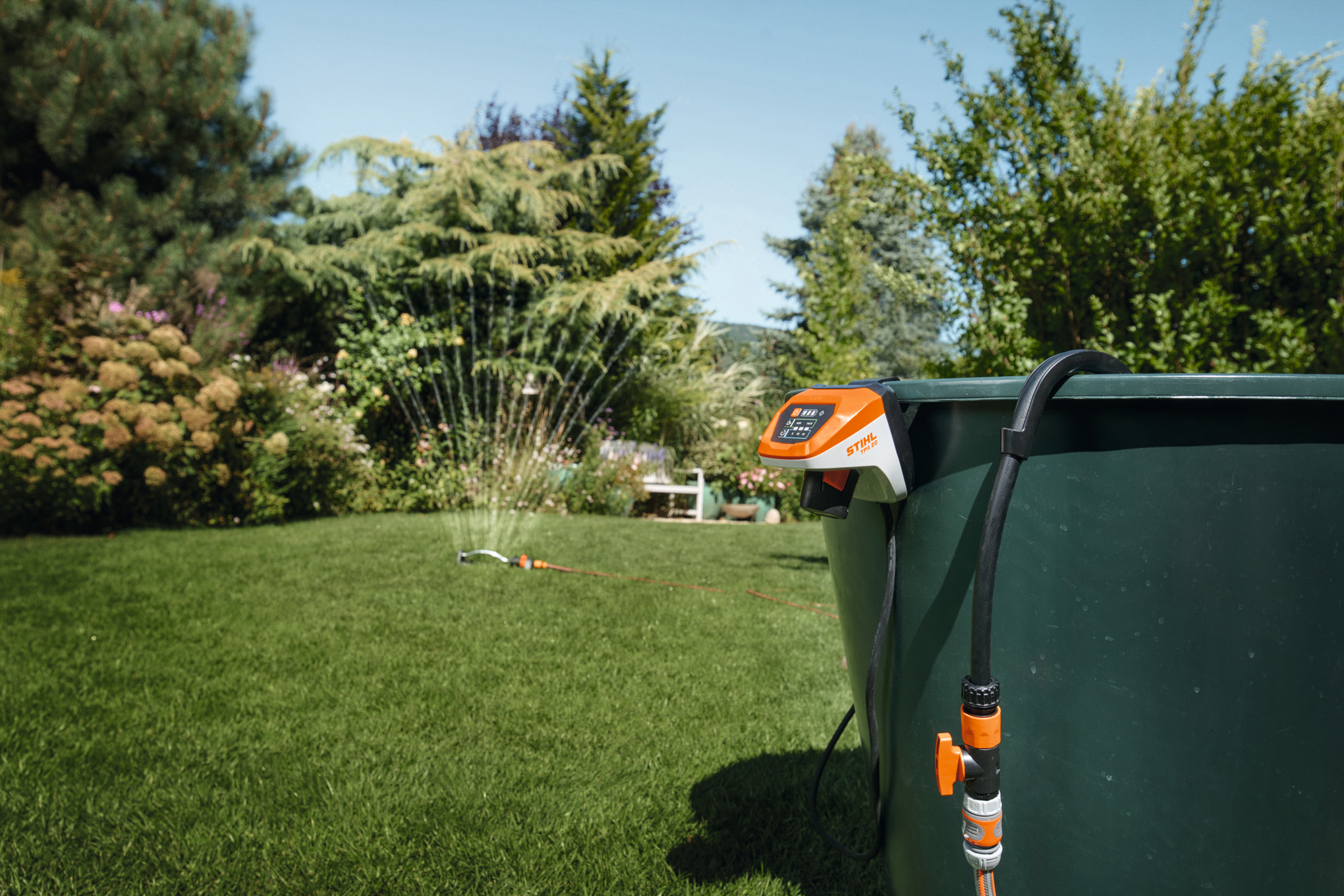

- Level 3 / MAX (2200 l/h, 2.2 bar) - designed for watering with a sprinkler or for draining with a long hose

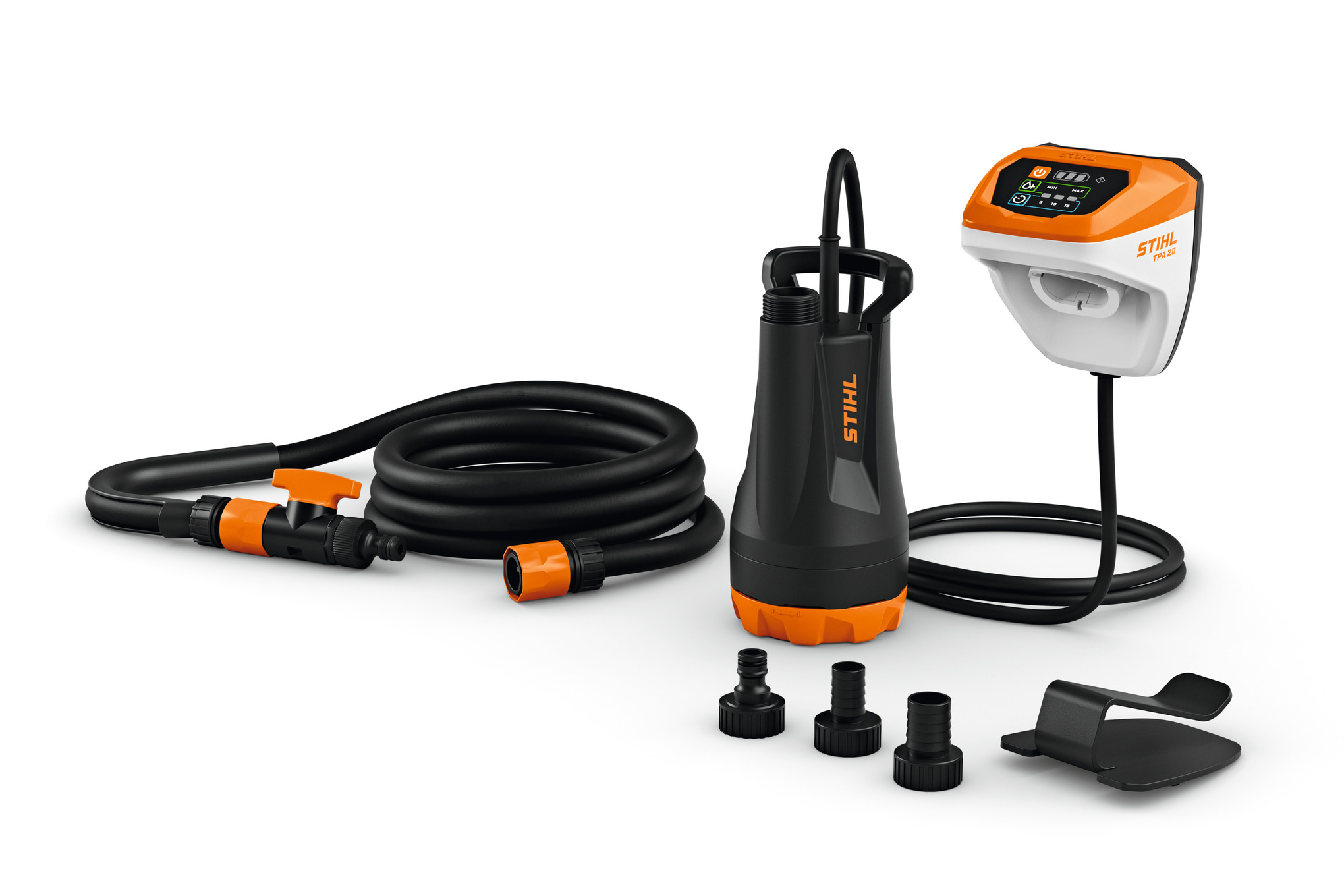

Included in the scope of delivery:
- TPA 20 power unit
- Submersible pump unit
- Connecting cable (2.5 m)

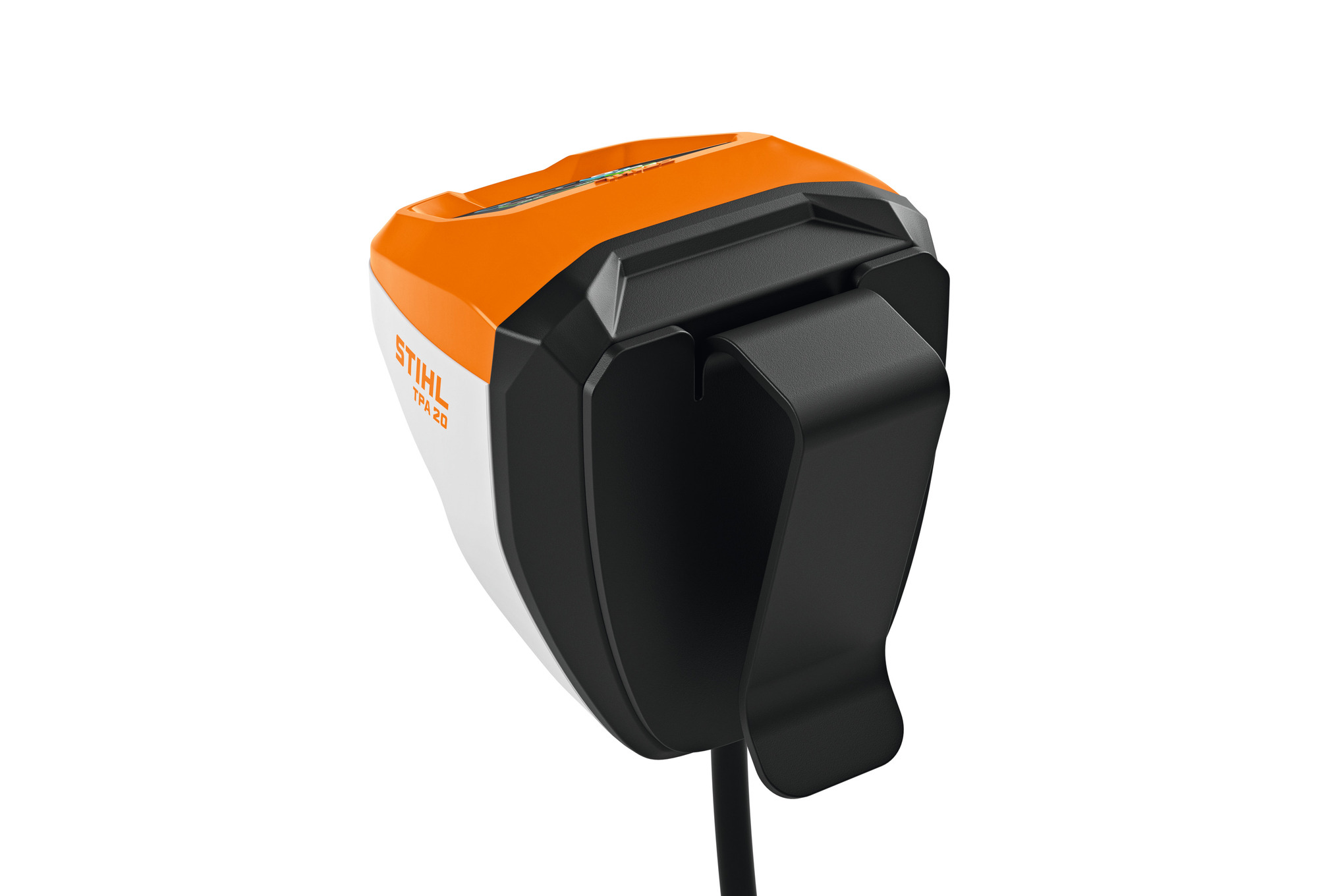

- Barrel hook
- Hose with quick-connect fittings (2.5 m), hose guide & shut-off valve
- Ø ½” / 13 mm adapter
- Ø ¾” / 19 mm adapter
- Ø 1" / 25 mm adapter
On a fully charged AS 2 battery the TPA 20 can pump approx. 550 litres of water (5 rainwater tanks or 50 watering cans) on Level 3. It has a working time of 15 minutes (Level 3) to 50 minutes (Level 1).
IMPORTANT: The pump is designed for ue with clear water. It should not be used with dirty / heavily contaminated water or large debris. It cannot be used with liquids other than water, such as pumping flammable, explosive or abrasive liquids, liquids at a temperature above 35°C, salt water, sandy water, sewage or foodstuffs. It is not suitable for dispensing liquid products to protect against fungal and pest infestation, for fertilizing and for weed control.
For a full list of STIHL battery-powered tool working times, click here.
