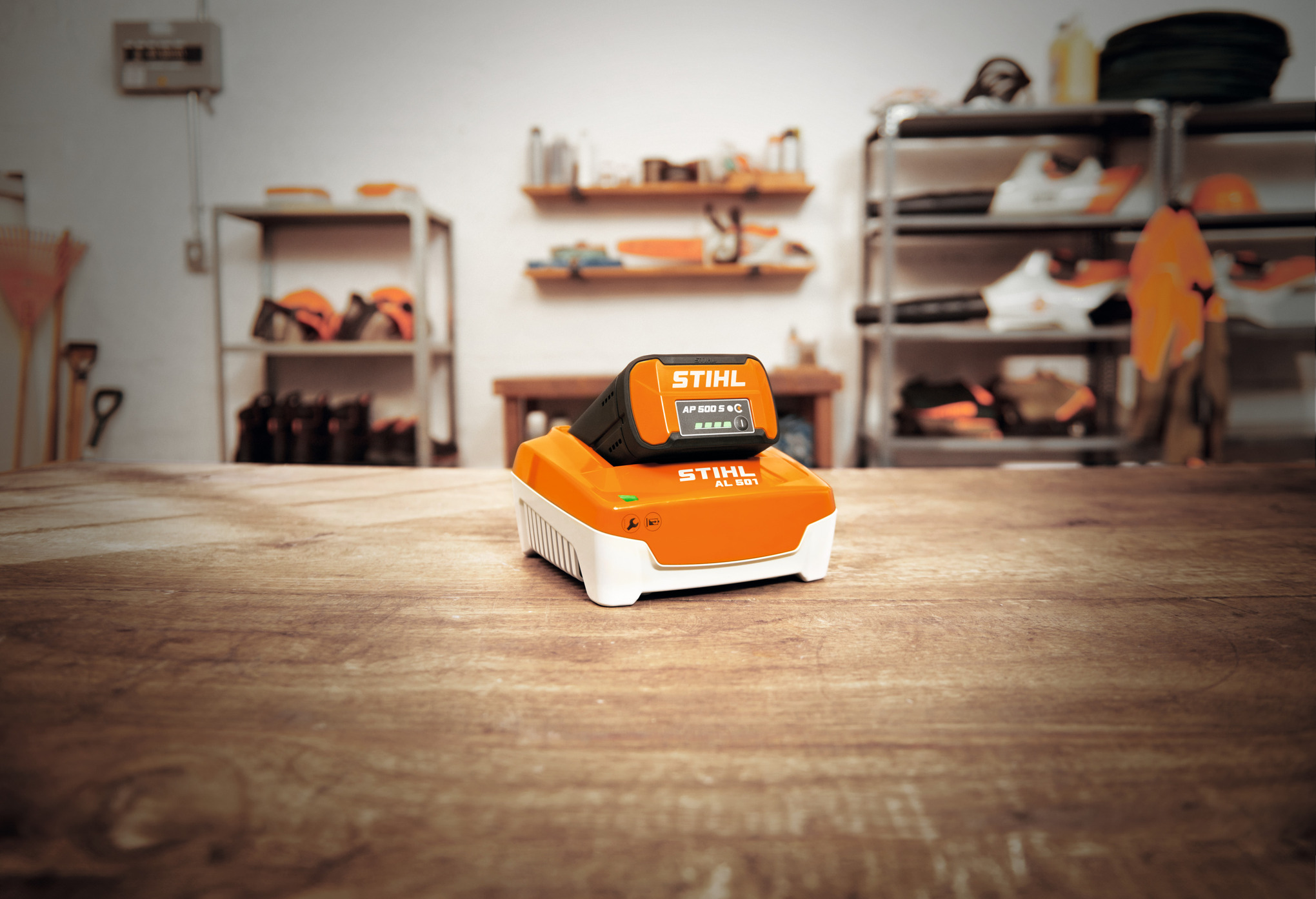

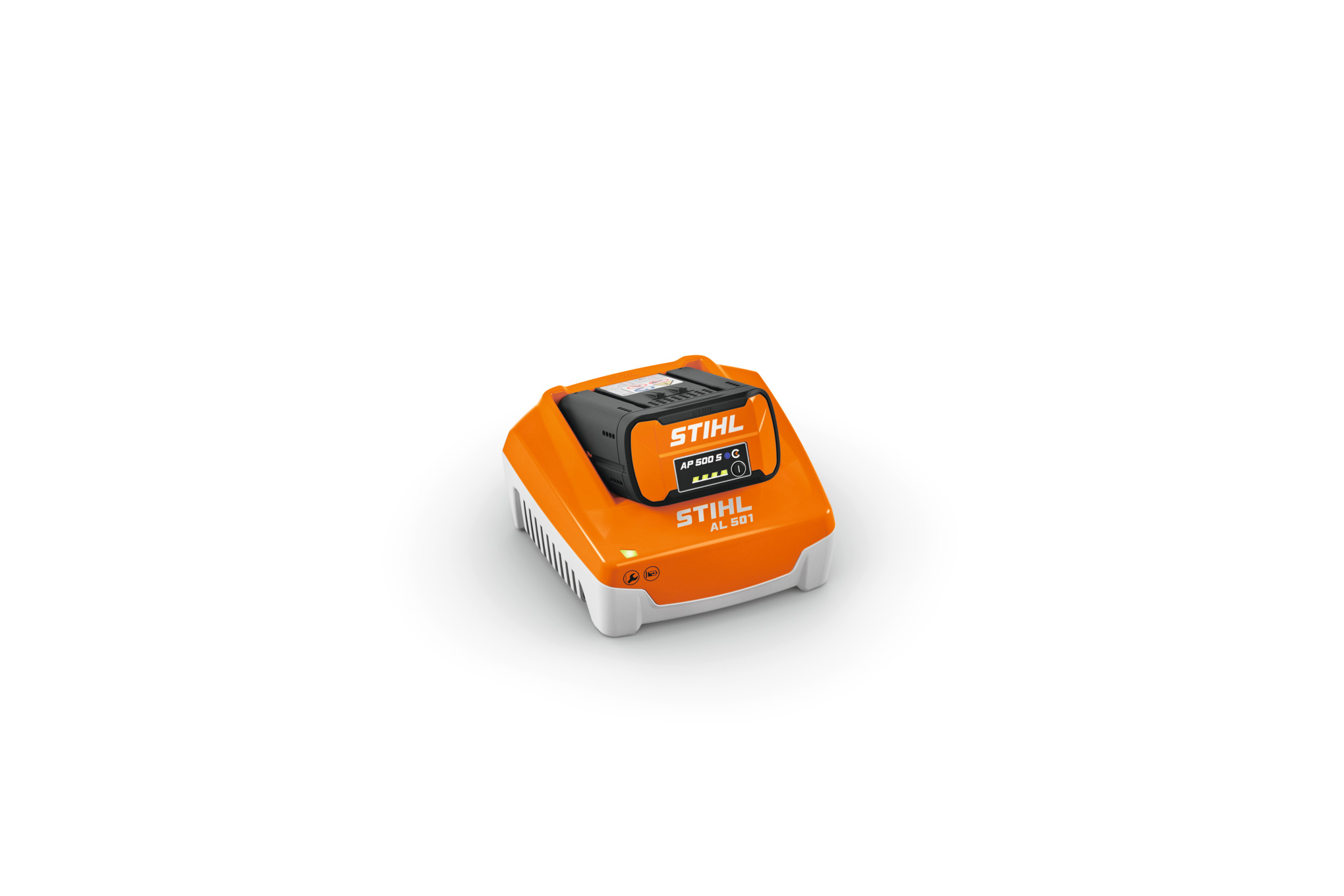

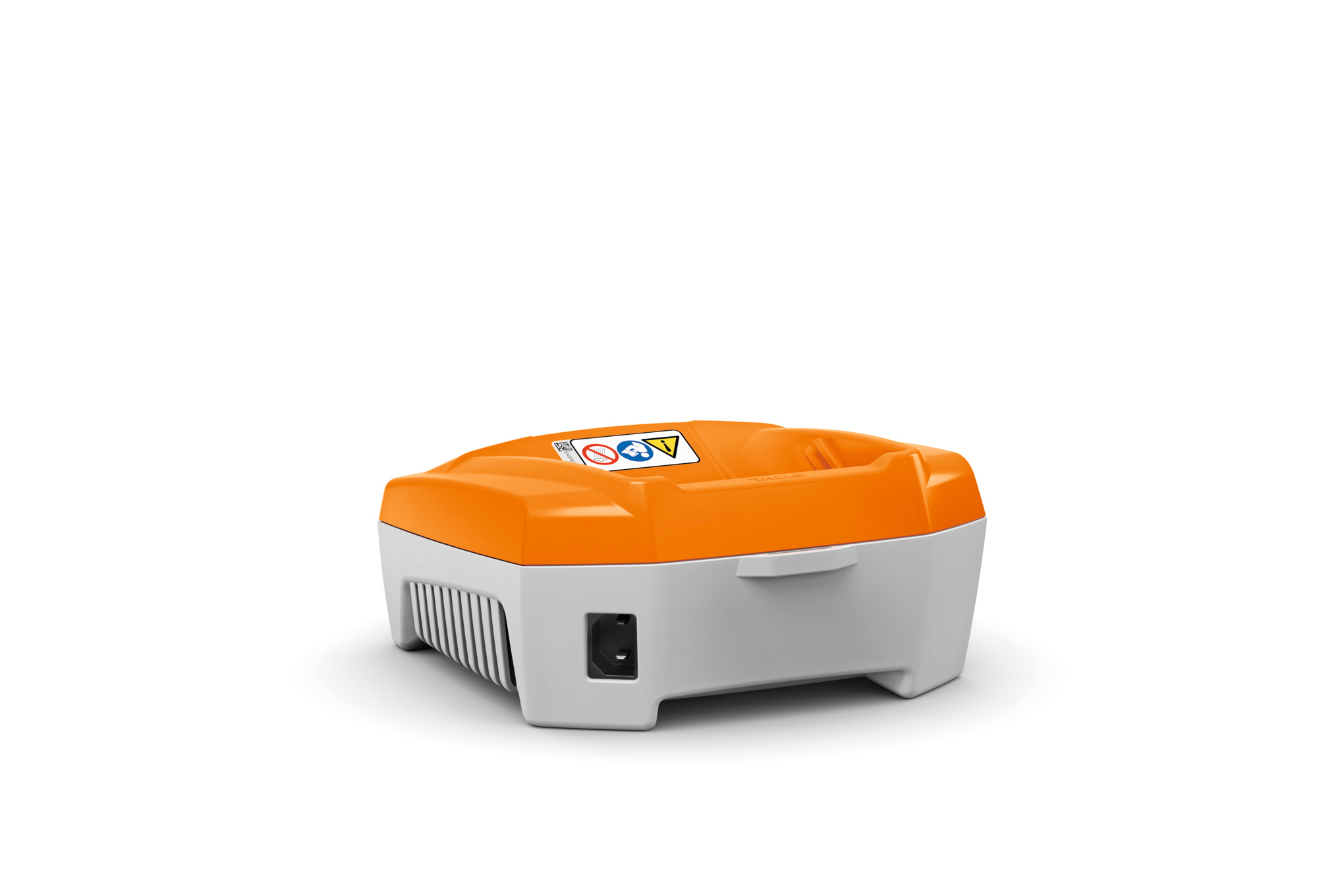

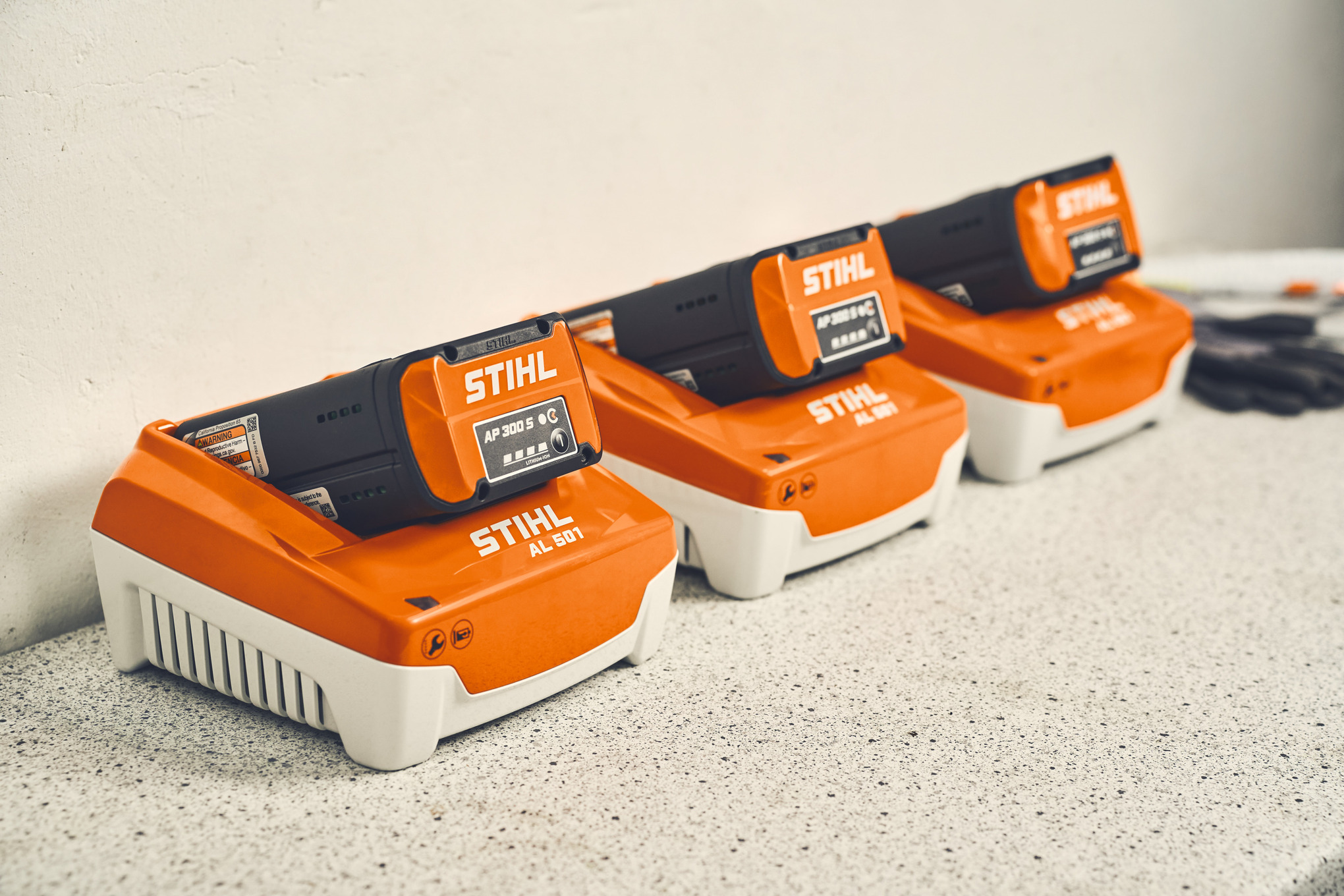

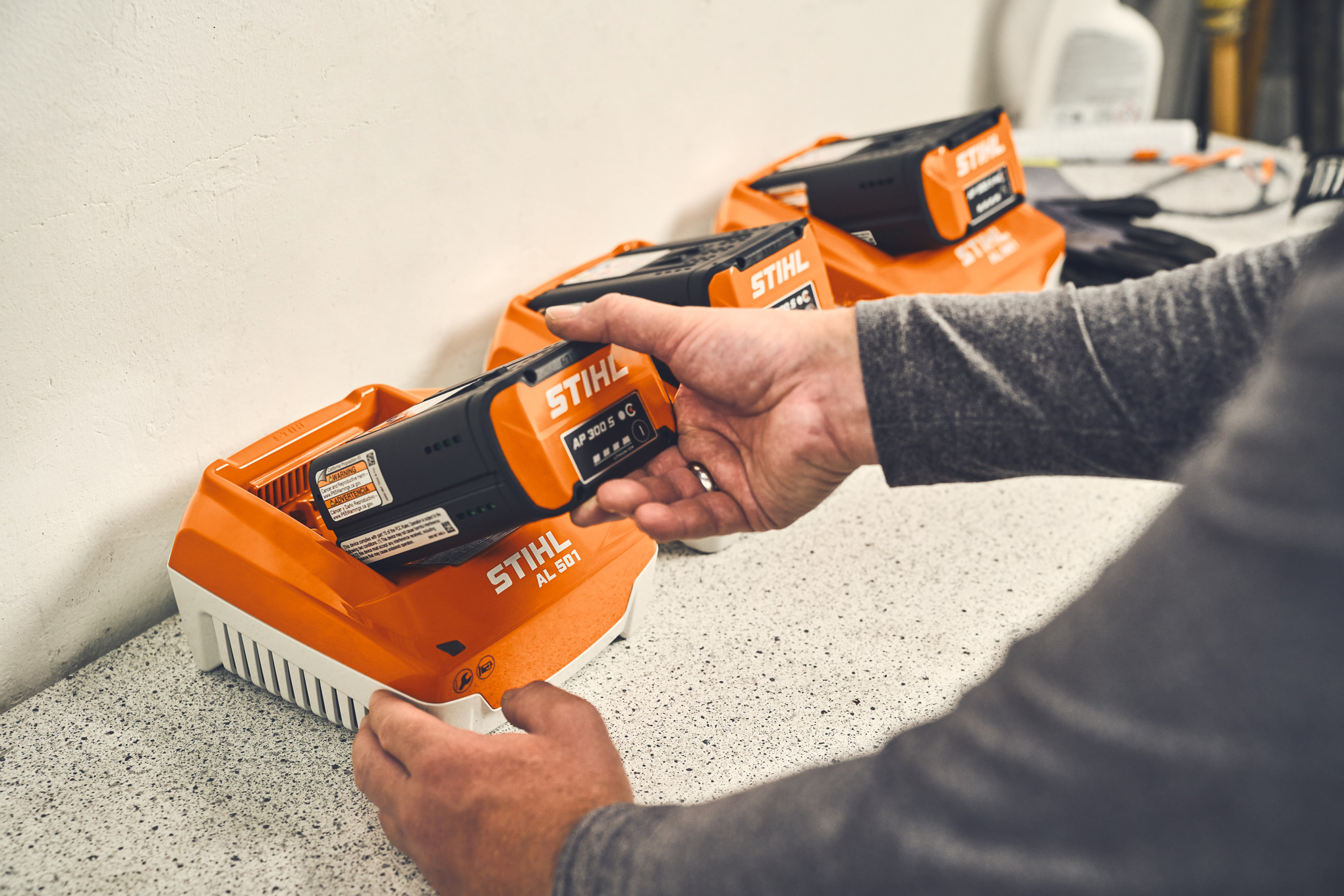

AL 501 Hi-speed charger
Free delivery for orders of £100 or more Estimated delivery date: Mon, 16/03 - Wed, 18/03
- Product Details
- 12 A charging current for fastest charging
- Suitable for all STIHL AK and AP System batteries
- Safe battery charging thanks to the active cooling system
- With a jig for practical wall mounting and cable winding
- Instruction manuals
You can find the instruction manuals here.
Technical details
| Rated voltage | 230 V |
| Rated current | 2.6 A |
| Power consumption | 570 W |
| Weight | 1.3 kg |
| Charging current | 12 A |
AL 501 Hi-speed charger: 230 Volt, 12 Amp charger for AK & AP System batteries
230 V hi-speed quick charger for STIHL AK System and AP System batteries. This charger has a 12 A charging current for fast recharge times and a built-in fan for active battery cooling.
The AL 501 automatically switches off when the battery is fully charged to prevent overcharging too. Two-stage charging means the battery is first charged at a constant current up to a predetermined voltage limit. Then, the charger switches over to charging at a constant voltage before the current reduces itself automatically until charging is complete. A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be wall mounted for space saving storage.
| AK System charge times (80/100%) | ||
|---|---|---|
| AK 10 battery | 25 mins | 45 mins |
| AK 20 battery | 30 mins | 50 mins |
| AK 30 S battery | 35 mins | 60 mins |
| AP System charge times (80/100%) | ||
|---|---|---|
| AP 20 battery | 25 mins | 40 mins |
| AP 200 S battery | 25 mins | 35 mins |
| AP 30 battery | 30 mins | 50 mins |
| AP 300 S battery | 30 mins | 45 mins |
| AP 500 S battery | 40 mins | 55 mins |
| AR 2000 L battery | 120 mins | 160 mins |
| AR 3000 L battery | 180 mins | 230 mins |
