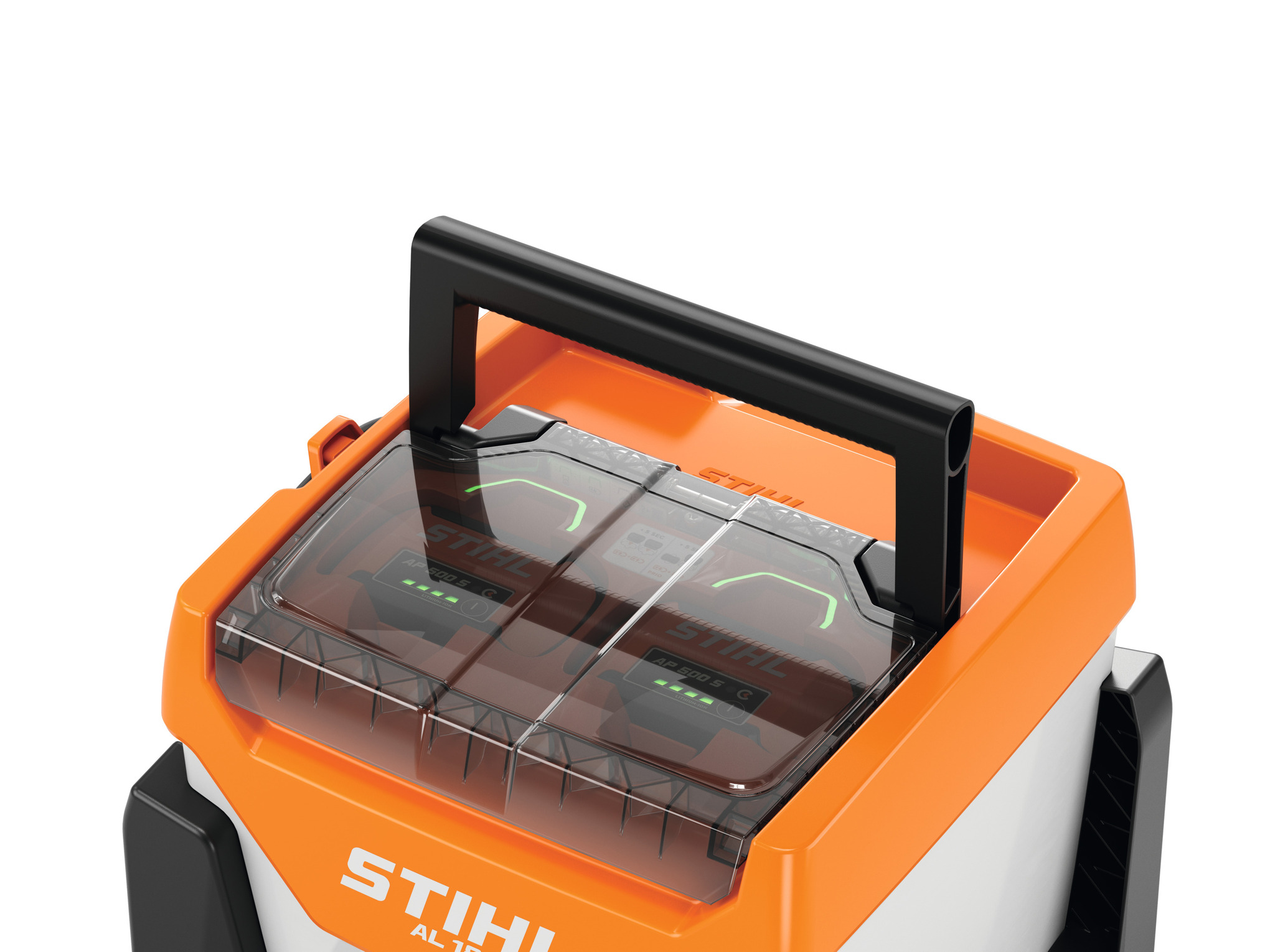

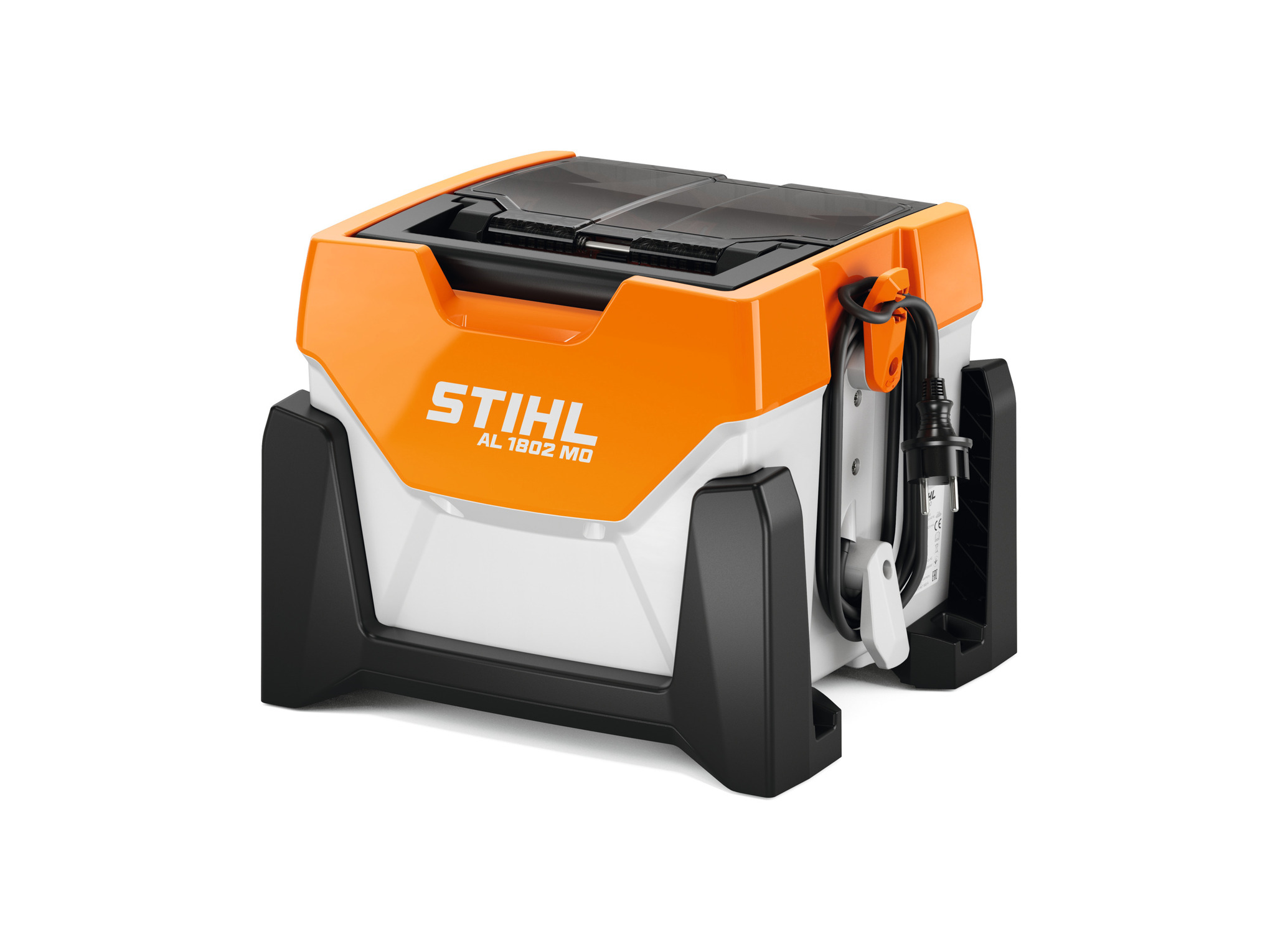

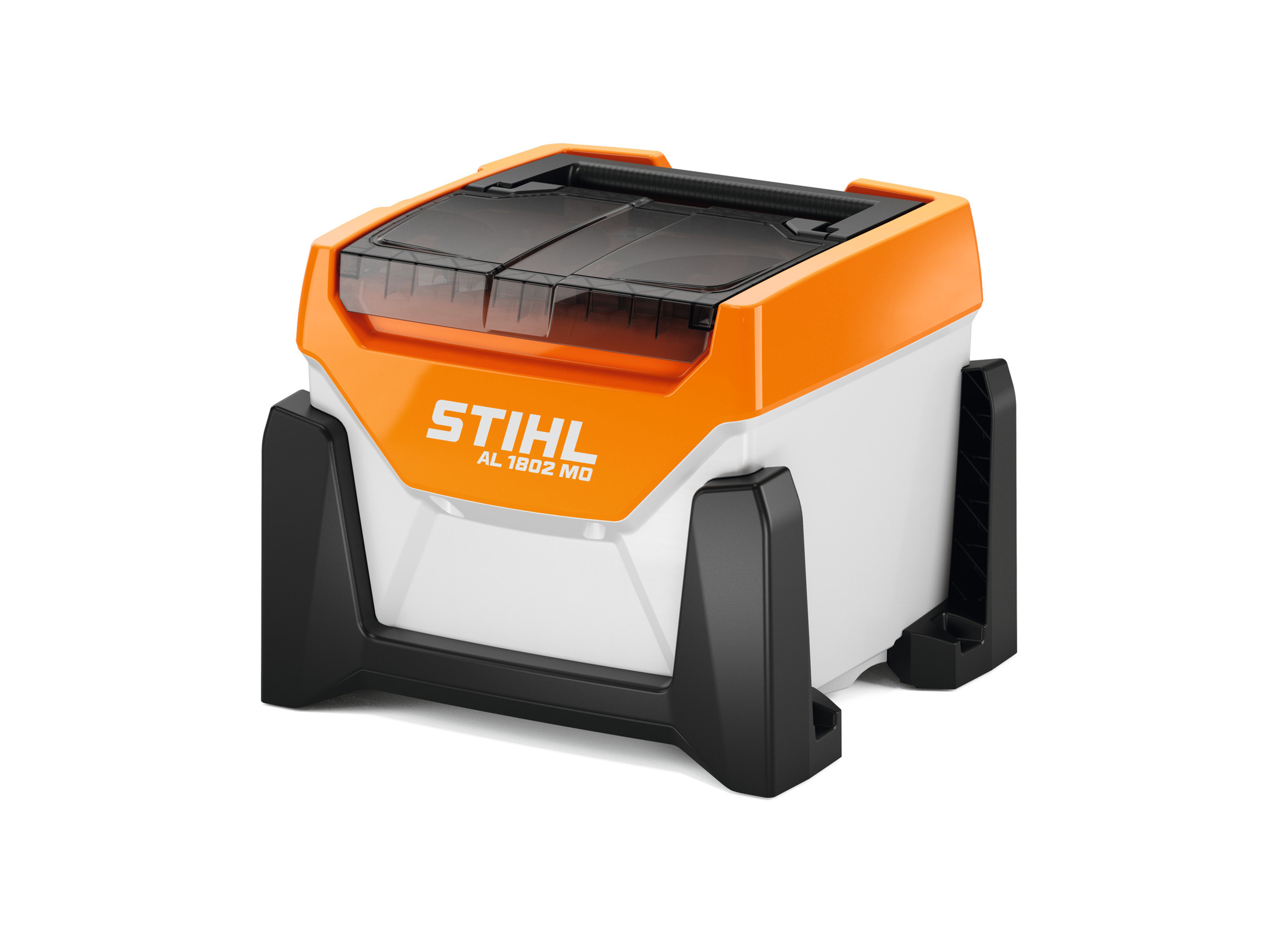

AL 1802 MO High-speed charger

AL 1802 MO High-speed charger
AL 1802 MO High-speed charger
AL 1802 MO High-speed charger
AL 1802 MO High-speed charger
AL 1802 MO High-speed charger
AL 1802 MO High-speed charger
£599.00
Prices include 20% VAT.
Select option
Would you like to be emailed when this item is back in stock?

  • Free delivery for orders of £100 or more

    Out of stock online - it may be available from your local STIHL Approved Dealer

    Estimated delivery date: Tue 21/07 - Thu 23/07
  • Product Details
    • Powerful high-speed charger for 2 STIHL ALLPRO/AP System batteries
    • For professionals in gardening and landscaping, municipalities and forestry
    • Fast charging of 2x batteries, simultaneously or one after the other
    • Charging in the workshop, on the go in a vehicle or outdoors
    • Suitable for outdoor use thanks to IPX4-certified splashwater protection
  • Instruction manuals

    You can find the instruction manuals here.

Technical details

Rated voltage220-240 V
Rated current8.6 A
Power consumption2000 W
Weight7.2 kg
Charging current42 A

AL 1802 MO High-speed charger: 230 Volt, 1800 W, 42 Amp mobile & outdoor charger for AP System batteries

230 V Dual battery high-speed charger for professional users charging up to 2x ALLPRO/AP batteries or AR L batteries (AR L connecting cable & adapter required).

Designed for use in the rain, outdoors or in vehicles, the AL 1802 MO offers maximum flexbility when working with AP batteries - whether you want to charger them in the workshop, on the road or at the work site!

The AL 1802 MO has a charging power of 1800 W which is almost 4 times more powerful than the AL 501 high-speed charger. For example, you can charge an ALLPRO Performance battery to 80% in 9 minutes*. The charger allows you to constantly cycle a small number of batteries when used in combination with a power bank.

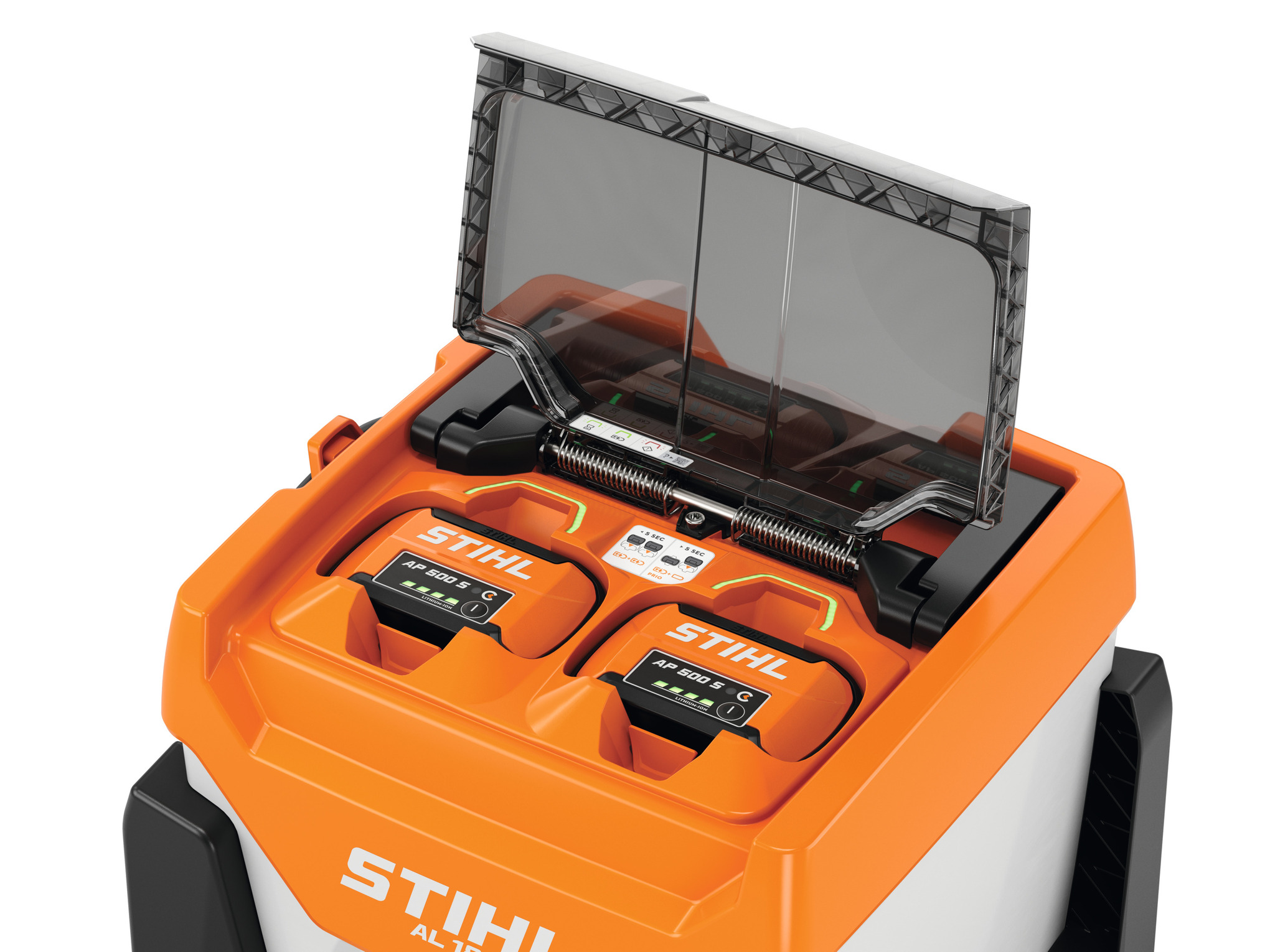

The two battery slots allow for both sequential (at full power) and parallel (at half power) charging.

  • Parallel charging (single slot mode): One battery is prioritised for charging up to 42 A if both batteries are plugged in more than 5 seconds apart. Both batteries are actively cooled for the fastest charging results.
  • Sequential charging (dual slot mode): Both batteries charge simultaneously at 21 A if plugged in within 5 seconds.

The best mode is always selected depending on the number of batteries in the charger.

The AL 1802 MO is not designed to be used with the CM 8 charge management solution.



BATTERYSINGLE SLOT (MAX. 42 A) / DUAL SLOT (MAX. 21 A)MAX. CHARGING CURRENT
CHARGING TIME 80%CHARGING TIME 100%
ALLPRO AP 20.125 / 25 mins40 / 40 mins4.5 A
ALLPRO AP 30.130 / 30 mins45 / 45 mins6 A
ALLPRO AP 100 P9 / 9 mins20 / 20 mins9 A
ALLPRO AP 200 P9 / 12 mins20 / 25 mins11 A
ALLPRO AP 300 P / PC9 / 18 mins20 / 30 mins13 A
AP 10030 / 30 mins40 / 40 mins4 A
AP 20030 / 30 mins40 / 40 mins12 A
AP 200.0 S15 / 15 mins40 / 40 mins16 A
AP 30025 / 25 mins35 / 35 mins12 A
AP 300.0 S15 / 15 mins35 / 35 mins24 A
AP 500.0 S**15 / 20 mins40 / 42 mins30 A
AR 2000 L115 / 115 mins165 / 165 mins12 A
AR 2000.0 L100 / 100 mins140 / 140 mins15 A
AR 3000 L175 / 175 mins235 / 235 mins12 A
AR 3000.0 L110 / 110 mins150 / 150 mins21 A

*Time taken to reach 80% charge at ambient/battery temperatures of 25–40 °C when used with the AL 1802 MO. Applies to ALLPRO Performance batteries AP 100 P, AP 200 P and AP 300 P(C).

**In dual slot mode, the AP 500.0 S has a slightly longer charging time due to limited available charging current.
