| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Battery system | AP |
| Device weight without battery | 1.1 kg |
| Max. Opening width blade | 45 mm |
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
Please note that this model is only available as a tool only without battery and charger. If you do not already have a battery or charger, please make sure that you add these to your basket.

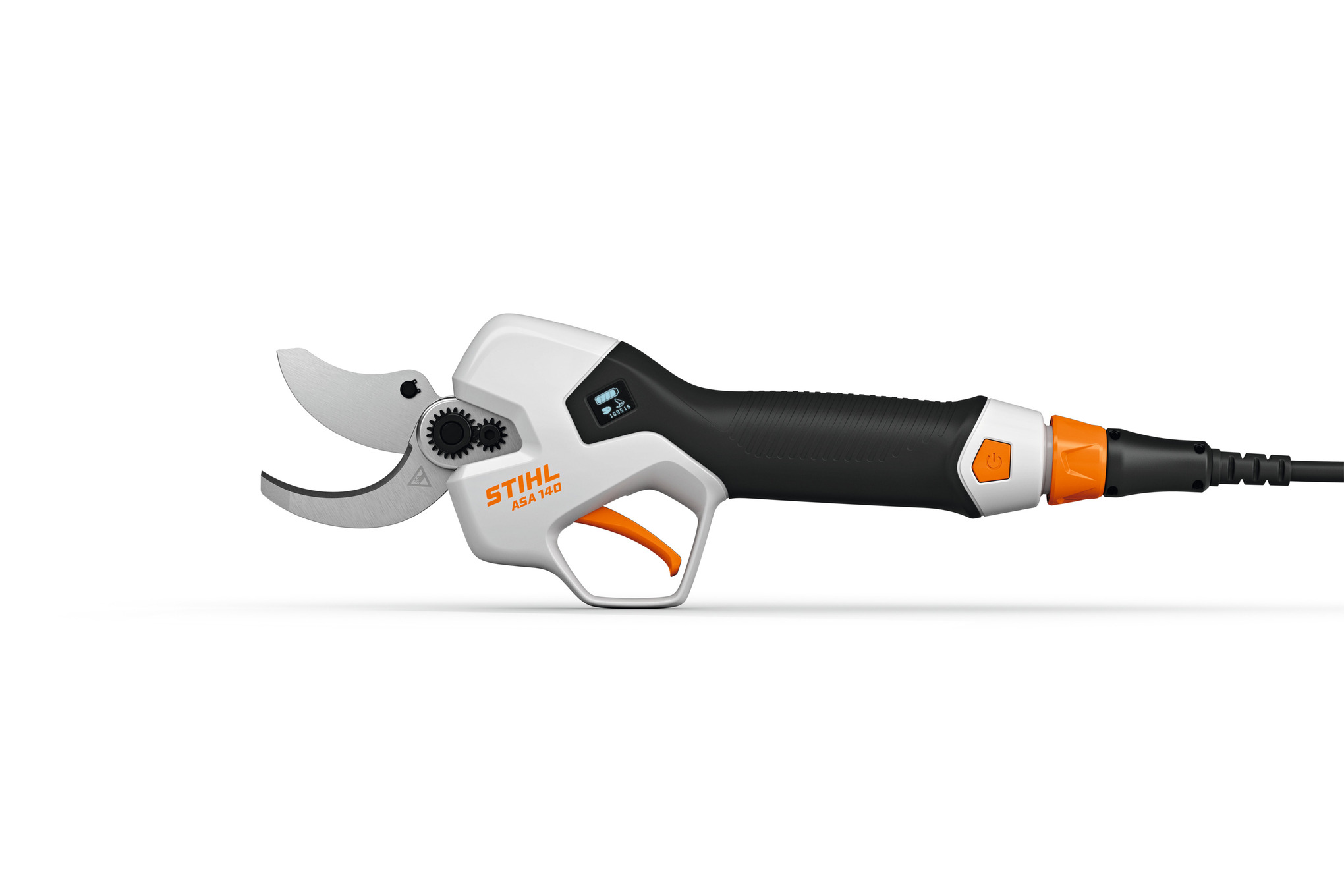

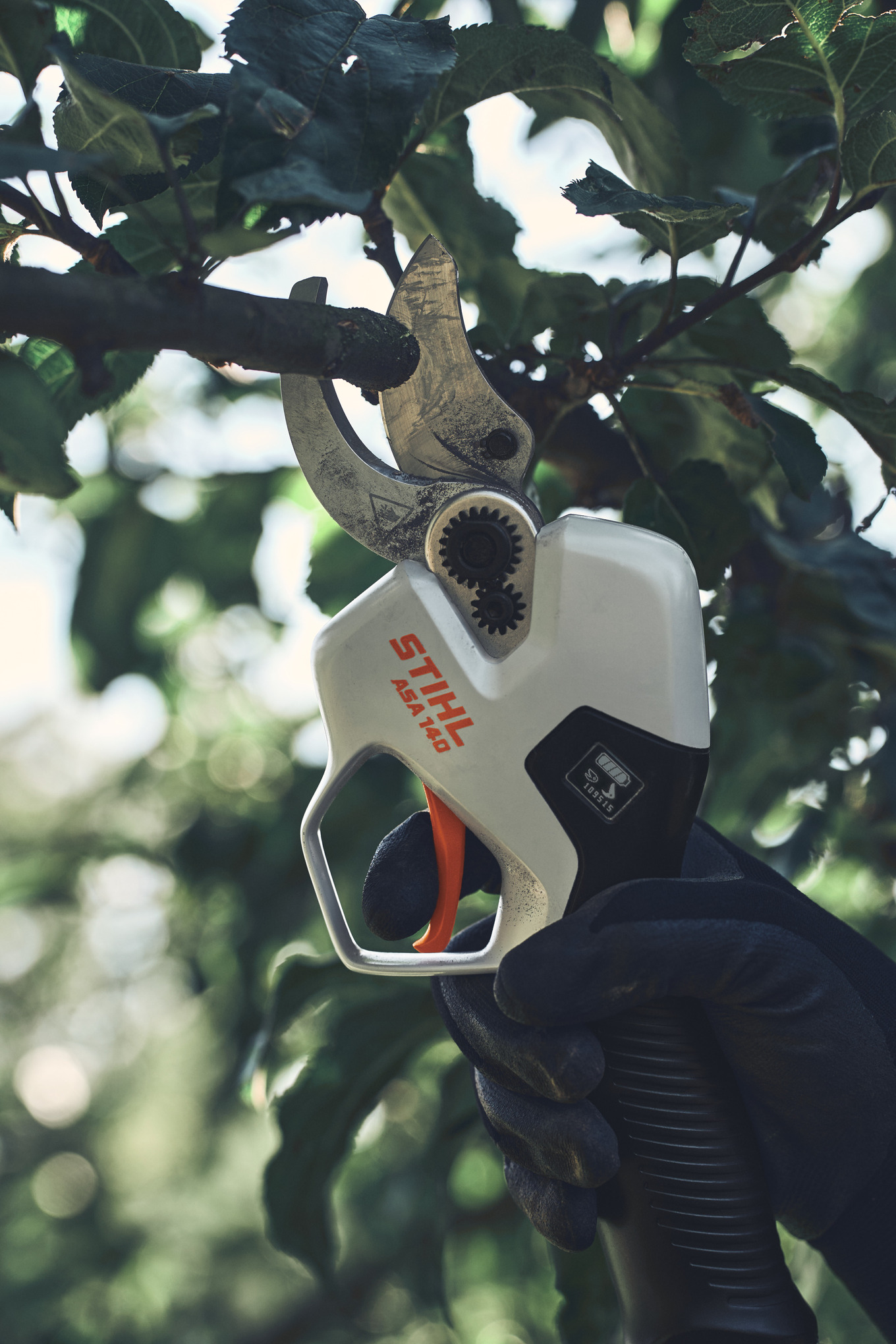

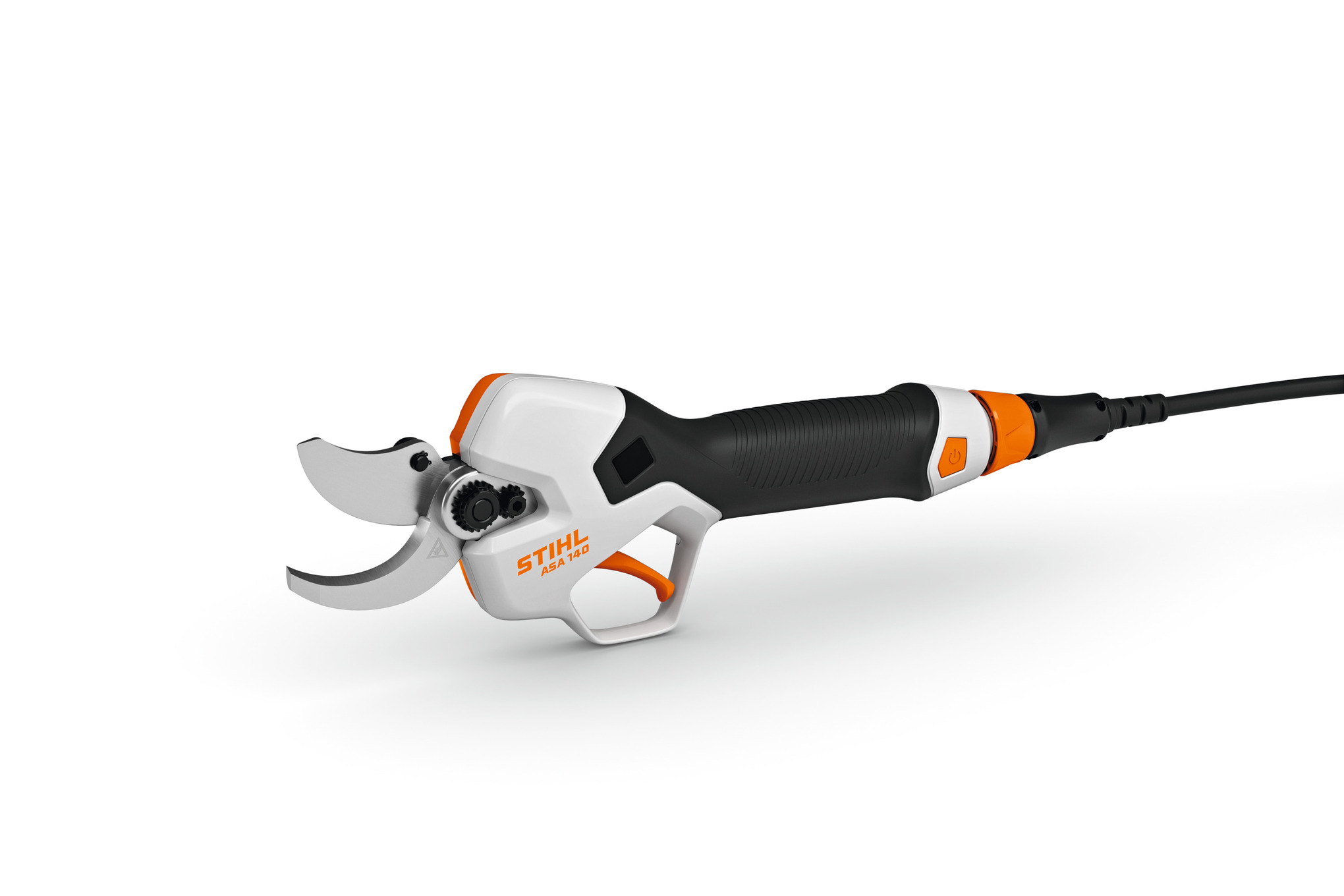

The ASA 140 battery-powered secateurs are the latest addition to STIHL’s AP System range of tools. Designed for professional users in viticulture, landscaping, and tree care, this tool delivers fast, precise pruning making it ideal for work and maintenance in vineyards and on large properties.
Powered by an interchangeable 36-volt lithium-ion battery, the ASA 140 effortlessly cuts through material up to 45 mm in one clean cut, and thanks to its low weight, soft rubber grip and well-balanced ergonomics, it’s extremely comfortable to use over long working periods. The ASA 140 has a progressive cut which means the blade follows your finger movement on the trigger. This allows for controlled, precise cuts to be made. The fast-closing speed and high cutting performance of the secateur blades means you can work quickly and efficiently with the tool. The ASA 140 is IPX4 rated, meaning it can be used in all weather conditions.
You can set the cordless powered secateurs to two different opening widths - 25 mm and 45 mm - by quickly double clicking the trigger. This allows you to adjust the secateurs to the type of work you are doing whether that be larger or smaller branches. The screen will show you the charge level and which blade width mode the ASA 140 is set to. It also shows you the total number of cuts the tool has done from the last time it was switched on. It will also show you a spanner icon if maintenance is required.
Certified in accordance with IPX4 protection class means the ASA 140 can be used in adverse weather conditions and is splashproof.
When used with the recommended AP 300 S battery, you can make around 9000 cuts on a full charge, which is around a day’s work.

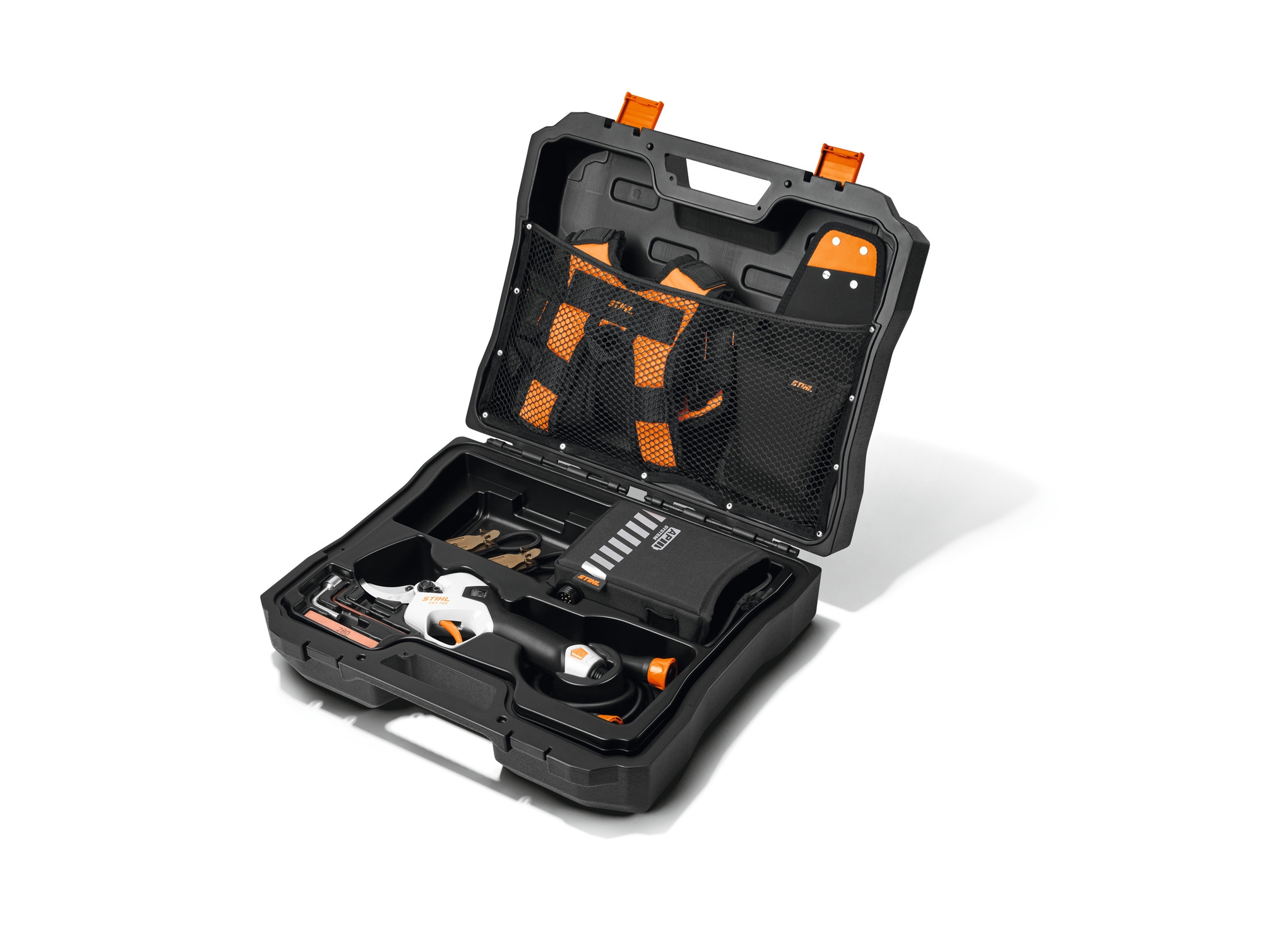

The ASA 140 comes with the following accessories as standard:
• 1 x Carry case
• 1 x Holster
• 1 x ADVANCE X-FLEX harness
• 1 x Battery bag
• 1 x Connecting cable
• 2 x Cable guides
• 1 x Grinding stone
• 1 x Maintenance tool
For a full list of STIHL battery-powered tool working times, click here.
