HTA 85 Telescopic pole pruner promotional set and tool only

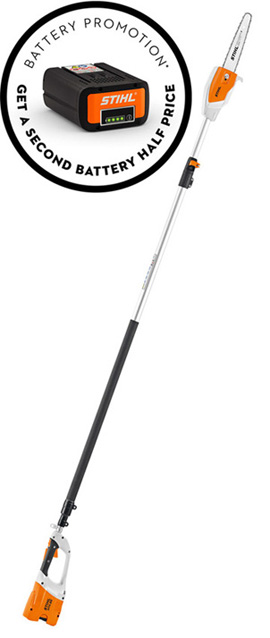

Powerful Cordless Telescopic Pole Pruner
General
Cordless pole pruner with telescopic shaft. Lightweight and powerful, with 1/4" PM3 saw chain with particularly easy biting characteristics and good cutting performance, low vibration and quiet for use in urban areas, fully equipped with side chain tensioning, total length from 270 to 390 cm, weight 4.8g without battery.
Get a second battery half price when you buy the promotional STIHL cordless tool set with a tool, recommended batteries and charger. The price paid will include the second battery at half price.
Versions
Price-
HTA 85 Promotional set with 2 x AP 300 batteries and AL 500 charger£899.99*
-
HTA 85 tool only£495.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Technical data
Technical data
| Recommended battery | AP 300 |
| STIHL Oilomatic saw chain pitch/type | 1/4" P PM3 |
| Run time with AP 200 min 1) | up to 42 |
| Run time with AP 300 min 1) | up to 55 |
| Battery life time AR 2000 min 2) | up to 180 |
| Run times with AR 3000 min 3) | up to 230 |
| Weight kg 4) | 4.5 |
| Sound pressure level dB(A) 5) | 76 |
| Sound power level dB(A) 5) | 93 |
| Vibration value, left m/s2 6) | 1 |
| Vibration value, right m/s2 6) | 1 |
| Oil tank volume cm3 | 105 |
| Cordless Technology | Lithium-Ion PRO |
1) Run times will vary depending on the application
2) Battery life times are approximate and may vary depending on application
3) Run times can vary depending on the application
4) Without cutting attachment, without battery
5) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
6) K-factor according to DIR 2006/42/EC = 2m / s ²
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Features
Standard features
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Accessories
Accessories
-
-
AP 100
Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion PRO battery with charge level indicator (four LEDs). 94 Wh battery energy, weight 0.8 kg. Compatible with all AL chargers; AL 101, AL 300 and AL 500. Click on the technical data tab of individual products to learn more about machine run times.
Technical data Battery weight 0.9 kg Energy content 1) 94 Wh Battery cell technology LITHIUM-ION Rated voltage 36 V Capacity 2.4 ah Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C Nominal cell capacity (according to manufacturer) 2.6 Ah 1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
Versions
Price- AP 100 £110.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AP 200
36 V, 4.8 ah Lithium-Ion battery. The AP 200 offers excellent run times on our cordless tools. The battery has an integrated LED charge indicator, clearly displaying as and when the battery needs charging. Compatible with the AL 101, AL 300 and AL 500 charger unit. Click on the technical data tab of individual products to learn more about machine run times.
Technical data Battery weight 1.3 kg Energy content 1) 187 Wh Battery cell technology LITHIUM-ION Rated voltage 36 V Capacity 4.8 ah Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C Nominal cell capacity (according to manufacturer) 2.6 Ah 1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
Versions
Price- AP 200 £140.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AP 300
Powerful 36 V, 6.0 ah Lithium-Ion battery. The AP 300 is STIHL's most powerful handheld battery, offering increased run times for those bigger jobs. The battery has an integrated LED charge indicator, clearly displaying as and when the battery needs charging. Compatible with the AL 101, AL 300 and AL 500 charger unit. Click on the technical data tab of individual products to learn more about machine run times.
Technical data Battery weight 1.8 kg Energy content 1) 227 Wh Battery cell technology LITHIUM-ION Rated voltage 36 V Capacity 6 ah Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C Nominal cell capacity (according to manufacturer) 2.1 Ah 1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
Versions
Price- AP 300 £190.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AR 1000 backpack battery
Lithium-Ion backpack battery with a large capacity for longer running times. Designed to work with the PRO cordless system. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 626 Wh battery energy, weight 5.5 kg. Click on the technical data tab of individual products to learn more about machine run times.
Technical data Battery cell technology LITHIUM-ION Energy content 1) 626 Wh Capacity 16.6 ah Charge voltage 41 V Battery weight 4.3 kg Temperature range 5-40 °C Rated voltage 36 V Weight with carrying system 5.5 kg Rated capacity 17.4 Ah Nominal capacity cell (according to manufacturer) 2.9 Ah 1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
Versions
Price- AR 1000 backpack battery £648.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AR 2000 backpack battery
The AR 2000 is a high capacity Lithium-Ion backpack battery built for comfort. The high capacity and energy content will give you plenty of run time to power your PRO cordless tools Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomic harness with integrated carry handle and rain protection cover. 916 Wh battery energy, weight 7.8 kg.
Technical data Battery cell technology LITHIUM-ION PRO Energy content 1) 916 Wh Capacity 21.8 ah Discharge temperature range -10-50 °C Charge voltage 41 V Battery weight 6.5 kg Temperature range 5-40 °C Rated voltage 36 V Weight with carrying system 7.8 kg Rated capacity 24.75 Ah Nominal capacity cell (according to manufacturer) 2.25 Ah 1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
Versions
Price- AR 2000 backpack battery £750.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AR 3000 backpack battery
Highest capacity Lithium-Ion backpack battery (1148 Wh) for longer running times. With a six LED charge level indicator, you will always know how much time you have left before needing to re-charge the unit. Sturdy housing with integrated carry handle and comfortable harness with lap belt and central buckle. Connection cable with plug and AP adapter for use with PRO cordless tools. Ideally suited to those bigger jobs, especially in more noise sensitive areas. Click on the technical data tab of individual products to learn more about machine run times.
Technical data Battery cell technology LITHIUM-ION Energy content 1) 1.148 Wh Capacity 29.3 ah Discharge temperature range -10-50 °C Charge voltage 41 V Battery weight 6.8 kg Temperature range 5-40 °C Rated voltage 36 V Weight with carrying system 8.1 kg Rated capacity 31.9 Ah Nominal capacity cell (according to manufacturer) 2.9 Ah 1) Energy content according to cell manufacturer specification. To increase the service life, the energy content available in the actual application is lower.
Versions
Price- AR 3000 backpack battery £852.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AL 101 charger
230 V charger compatible with STIHL AP and AK batteries. With operating mode indicator (LED) and passive battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.
Technical data Rated voltage 220-240 V Weight 0.7 kg Rated current 0.7 A Charging current 1.6 A Power output 0.1 kW Protection class II Versions
Price- AL 101 charger £35.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AL 300 Quick charger
Quick charger for STIHL Lithium-ion batteries. With operating mode indicator and active battery cooling. The quick charger will fully charge an AP 100 battery in 50 minutes, AP 200 in 55 minutes and AP 300 in 75 minutes.
Technical data Weight 1.2 kg Mains voltage 220-240/50 V Rated voltage 220-240 V Power output 0.3 kW Weight 1) 1.2 kg Rated current 2.3 A Protection class II Charging current 6.5 A 1) 0
Versions
Price- AL 300 quick charger £70.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AL 500 Hi-speed charger
The quickest charger for STIHL Lithium-ion batteries. With operating mode indicator and active battery cooling. The quick charger will fully charge all the AP (Lithium-Ion PRO) batteries in 35 minutes. The AL 500 is highly recommended to charge the AR 2000 (130 min) and AR 3000 (160 min) backpack batteries.
Technical data Weight 1.3 kg Charging time AR 1000 1) 120 min Charging time AR 2000 1) 130 min Charging time AR 3000 1) 160 min Rated voltage 220-240 V Power output 0.6 kW Weight 2) 1.3 kg Rated current 2.6 A Protection class II Charging current 12 A 1) Up to 100 % capacity
2) 0
Versions
Price- AL 500 Hi-speed charger £120.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Quick release bracket for telescopic shaft harness
For outstandingly ergonomic design in combination with a basic shoulder strap or the RTS harness. The tool is easy to attach and quick to release. Included in the scope of delivery with the HT 56, HT 103 and HT 133. Suitable for the HT 101, HT 131, HTA 85 and HLA 85.
Versions
Price- Quick release bracket for telescopic shaft harness £9.80*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Battery belt with harness
Sturdy and ergonomically shaped belt with comfortable harness for weight distribution across hips and shoulders. Reduced total weight in the hand, as the battery in the AP holster with connecting cable is worn on the belt. Power is transmitted in combination with additional accessories, such as by the AP holster with connecting cable for tools with a socket, and additionally with an AP adapter for tools with a battery slot.
Versions
Price- Battery belt with harness £43.50*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AP holster with connecting cable
Makes it possible to transfer energy between a STIHL AP battery and a tool with a socket. Can be combined with the battery belt carrying system with harness. Cable length: 120 cm. With integrated electronics for overload switching with acoustic signals. For use with STIHL PRO cordless tools that require a connecting cable.
Versions
Price- AP holster with connecting cable £135.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Protection foot
Foot to protect the battery from contact with the ground. Additional handle for short-term shaft extension, for HTA 65, HTA 85 and HLA 85.
Versions
Price- Protection foot £19.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Super Harness
The Super Harness transfers the weight of a pole pruner to the user's hips resulting in a dramatic reduction in back stress while allowing full freedom of movement. The Super Harness can be easily adjusted to suit the user's size. It holds the tool securely, enabling it to be easily carried to the next tree. Suitable for the HT 101, HT 131 and HTE 60.
Versions
Price- Super Harness for pole pruners £96.41*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Battery belt with harness
Sturdy and ergonomically shaped belt with comfortable harness for weight distribution across hips and shoulders. Reduced total weight in the hand, as the battery in the AP holster with connecting cable is worn on the belt. Power is transmitted in combination with additional accessories, such as by the AP holster with connecting cable for tools with a socket, and additionally with an AP adapter for tools with a battery slot.
Versions
Price- Battery belt only £37.50*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Battery belt with harness
Sturdy and ergonomically shaped belt with comfortable harness for weight distribution across hips and shoulders. Reduced total weight in the hand, as the battery in the AP holster with connecting cable is worn on the belt. Power is transmitted in combination with additional accessories, such as by the AP holster with connecting cable for tools with a socket, and additionally with an AP adapter for tools with a battery slot.
Versions
Price- Battery belt with harness £43.50*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Cover for the battery slot
For covering the battery slot on any STIHL cordless machine. Protects against dust and dirt during long storage periods.
Versions
Price- Cover for AP battery slot £2.70*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Carry bag for battery accessories
Soft bag for safe transport and storage of up to 2 x STIHL Li-ion batteries and 1 x STIHL charger.
Versions
Price- Carry bag for battery accessories £23.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Documents
Owners manuals and safety brochures
| STIHL HTA 65, 85 (BG, CZ, D, DK, E, FIN, GB, H, N, P, PL, RO, RUS, S) | Download | PDF, 42.3 MB |
| STIHL HTA 65, 85 (D, E, F, GB, I, NL, P) | Download | PDF, 17.4 MB |
Notes:
- STIHL and VIKING online owner’s manuals are usually for the latest versions of the machine. Your product may be a slightly older production model but the manual will still be appropriate for the relevant model number.
- The languages contained in the document are also displayed in brackets, for example (GB) = English.
