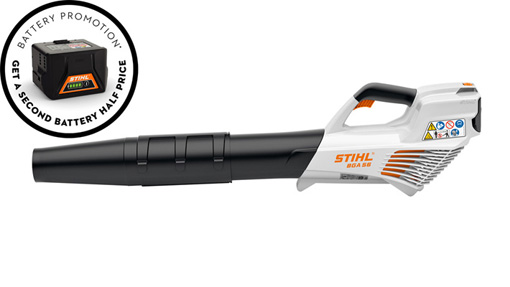

BGA 56 Blower battery and charger sets
Compact cordless blower with a choice of battery sets
General
The blowing force of this powerful yet light blower is perfectly suited to clearing leaves, twigs and light debris from around the home and garden. Designed with comfort in mind, the BGA 56 is well balanced, length adjustable and easy to control. It’s a great time saver compared to raking or sweeping up leaves.
Get a second battery half price when you buy the promotional STIHL cordless tool set with a tool, recommended batteries and charger. The price paid will include the second battery at half price.
Versions
Price-
BGA 56 Promotional set with 2 x AK 20 batteries and AL 101 charger£246.50*
-
BGA 56 Set with AK 20 battery and AL 101 charger£199.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Technical data
Technical data
| Vibration value, right m/s2 1) | 2.5 |
| Sound pressure level dB(A) 2) | 79 |
| Sound power level dB(A) 2) | 91 |
| Rated voltage V | 36 |
| Air flow rate m3/h 3) | 600 |
| Cordless technology | Lithium-Ion AK-System |
| Blowing force N 4) | 9 |
| Maximum air flow m3/h 5) | 750 |
| Air speed mph 6) | 100.7 |
| Airspeed m/s | 45 |
| Max. airspeed m/s | 54 |
| Max. air speed mph | 120.8 |
| Run time with AK10 battery min 7) | up to 13 |
| Run time with AK 20 battery min 8) | up to 25 |
1) K-factor according to DIR 2006/42/EC = 2m / s ²
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) With round nozzle in the blowing operation
4) Combination of airspeed and air throughput
5) Without blowing tube and nozzle
6) with round nozzle
7) Run times may vary depending on the application
8) Run times may vary depending on application
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Features
Standard features
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Accessories
Accessories
-
-
AL 101 charger
230 V charger compatible with STIHL AP and AK batteries. With operating mode indicator (LED) and passive battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.
Technical data Rated voltage 220-240 V Weight 0.7 kg Rated current 0.7 A Charging current 1.6 A Power output 0.1 kW Protection class II Versions
Price- AL 101 charger £35.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AK 30 battery
Compact lithium-ion battery for the COMPACT cordless power system with a voltage of 36 V and a capacity of 180 Wh. Battery life depends on the device type. With charge level indicator (LED). Compatible with AL 101, AL 300 and AL 500 chargers.
Technical data Battery life HSA 56 1) 120 min Battery life FSA 56 1) 60 min Battery life BGA 56 1) 30 min Battery life MSA 120 C-BQ 1) 55 min Battery life time MSA 140 C-BQ 2) 45 min Battery cell technology LITHIUM-ION Battery weight 1.3 kg Battery capacity 180 Wh Rated voltage (V) 36 V 1) Running times depend on the conditions of use and may vary
2) Battery life times are approximate and may vary depending on application
Versions
Price- AK 30 Battery £125.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
Carry bag for battery accessories
Soft bag for safe transport and storage of up to 2 x STIHL Li-ion batteries and 1 x STIHL charger.
Versions
Price- Carry bag for battery accessories £23.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AL 500 Hi-speed charger
The quickest charger for STIHL Lithium-ion batteries. With operating mode indicator and active battery cooling. The quick charger will fully charge all the AP (Lithium-Ion PRO) batteries in 35 minutes. The AL 500 is highly recommended to charge the AR 2000 (130 min) and AR 3000 (160 min) backpack batteries.
Technical data Weight 1.3 kg Charging time AR 1000 1) 120 min Charging time AR 2000 1) 130 min Charging time AR 3000 1) 160 min Rated voltage 220-240 V Power output 0.6 kW Weight 2) 1.3 kg Rated current 2.6 A Protection class II Charging current 12 A 1) Up to 100 % capacity
2) 0
Versions
Price- AL 500 Hi-speed charger £120.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
-
-
AL 300 Quick charger
Quick charger for STIHL Lithium-ion batteries. With operating mode indicator and active battery cooling. The quick charger will fully charge an AP 100 battery in 50 minutes, AP 200 in 55 minutes and AP 300 in 75 minutes.
Technical data Weight 1.2 kg Mains voltage 220-240/50 V Rated voltage 220-240 V Power output 0.3 kW Weight 1) 1.2 kg Rated current 2.3 A Protection class II Charging current 6.5 A 1) 0
Versions
Price- AL 300 quick charger £70.00*
* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.
-
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
Documents
Owners manuals and safety brochures
Notes:
- STIHL and VIKING online owner’s manuals are usually for the latest versions of the machine. Your product may be a slightly older production model but the manual will still be appropriate for the relevant model number.
- The languages contained in the document are also displayed in brackets, for example (GB) = English.
